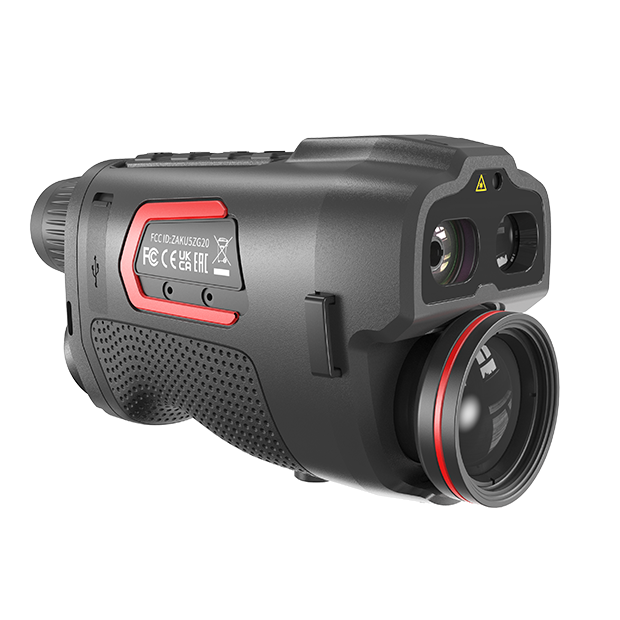

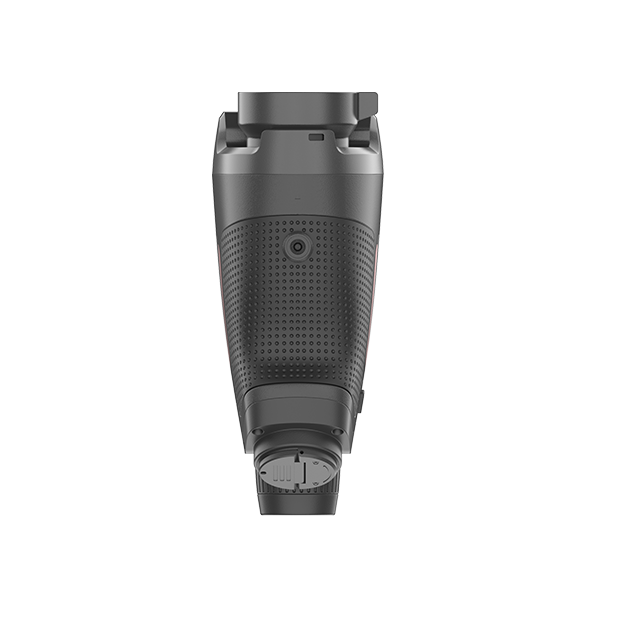

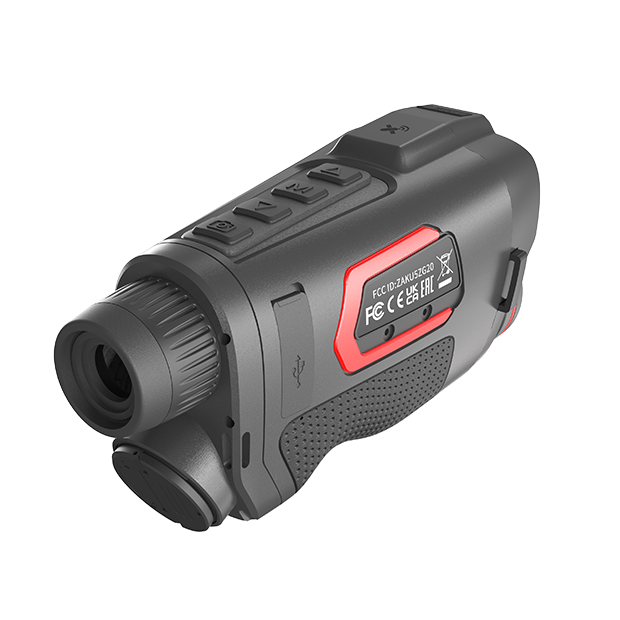

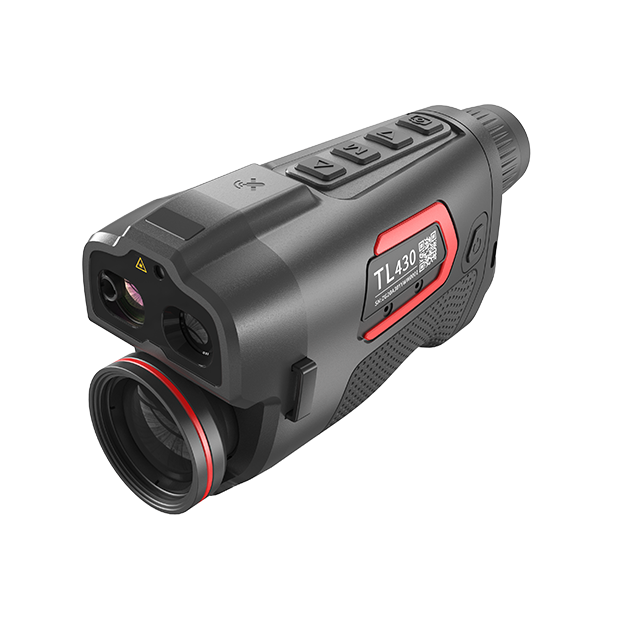

TL430

Multispectral Fusion Thermal Monocular

The TL Series is the first multispectral fusion thermal monocular of Guide Outdoor whose all-in-one design meets the needs of all-day and all-weather observation. Equipped with a 12μm high-end thermal sensor, 1920×1080 CMOS sensor and 1920×1080 AMOLED display, the TL Series offers significantly sharp and richly contrasted images with an integrated laser rangefinder with up to 600m accurate ranging. Integrated with a built-in GPS, laser rangefinder, and gyroscope, target latitude and longitude, target distance, and device angle information can be obtained for quick aiming.

  • Thermal+Digital
    Day & Night Use
  • IR Resolution
    400×300@12μm
  • AMOLED Display
    1920×1080
  • Laser Ranging
    600m
  • 209-211.png
  • 210.png
  • 211.png
  • 212.png

Product Features

  • All-in-one Design for All-day and All-weather Observation

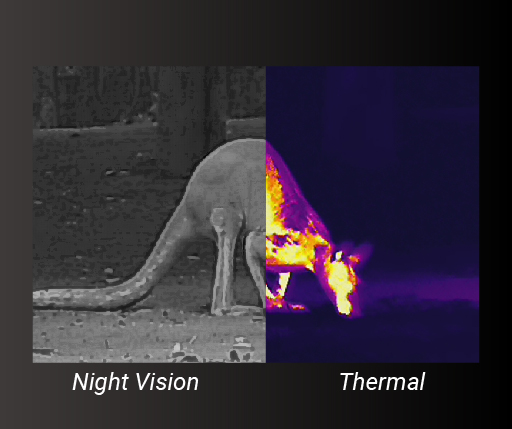

    With integrated thermal and night vision, considering both the daytime and the nighttime, for quick search and target identification.

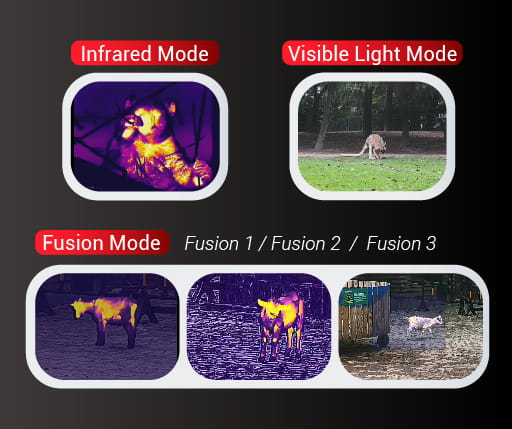

  • Combined Multispectral Viewing Modes

  • 1920×1080 AMOLED Display

  • Built-in Precision Laser Rangefinder

  • Built-in GPS for Target Positioning

  • 61.jpg

Media Gallery

TL1

TL2

TL3

TL4

Technical Parameters

Model

TL430

添加对比

Sensor
Type Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS
Resolution Thermal: 400×300@12μm; Digital: 1920×1080@4μm
NETD 30mK
Frame rate 50Hz
Lens
Objective lens Thermal: 35mm, F1.0; Digital: 22mm, F1.5
Field of view 7.8°×5.9°
FOV m@100m 14×10
Magnification 2.3x~9.2x
Detection range 1800m/1950yd
Focus Manual

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
