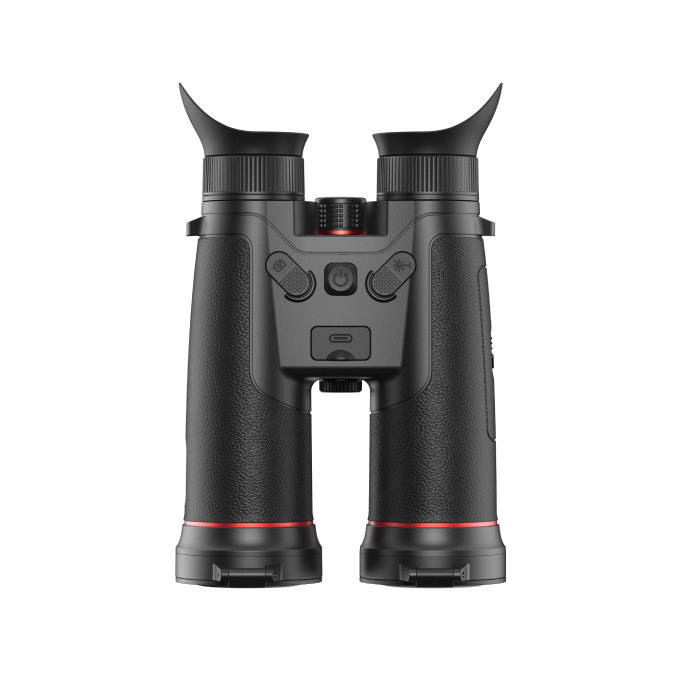

TN650L 2.0

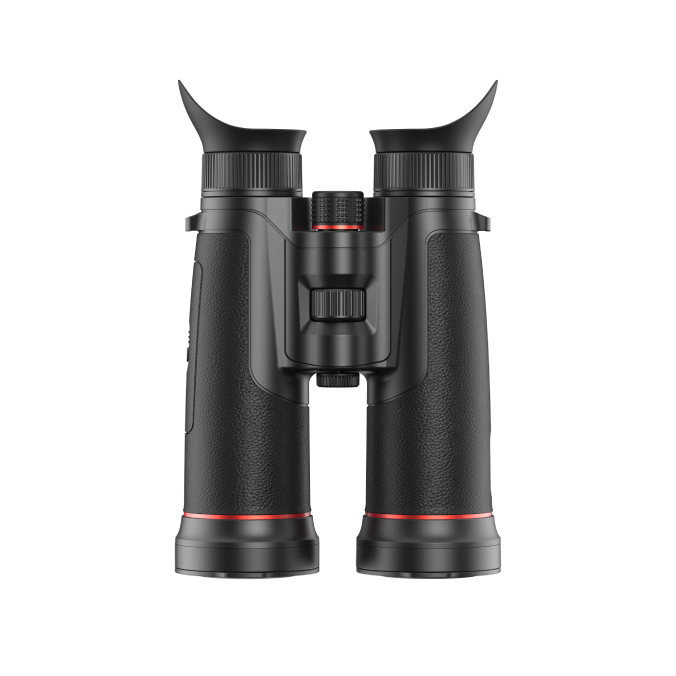

Handheld Thermal Binoculars

The all-new Handheld Binocular Series (TN 2.0, TN Muo 2.0, DN 2.0, and DN Muo 2.0) redefines all-weather optical imaging solutions with innovation and precision. Whether for hunting, law enforcement, or professional use, the series combines advanced thermal and visible light imaging technology, intelligent sensor fusion, and high-performance design to deliver exceptional performance and reliability, making it your ideal choice.

IR resolution

640×512@12μm
Focal Length

50mm/F1.0
NETD

18mK
Magnification

3.9x~31.2x

Product Brochure

Product Features

Brand-New Housing Slim Body

The TN 2.0 Series features a slim, aesthetic housing inspired by classic binocular design, ensuring a more comfortable grip and improved handling. Compared to the previous generation, it is 20% lighter for enhanced portability.

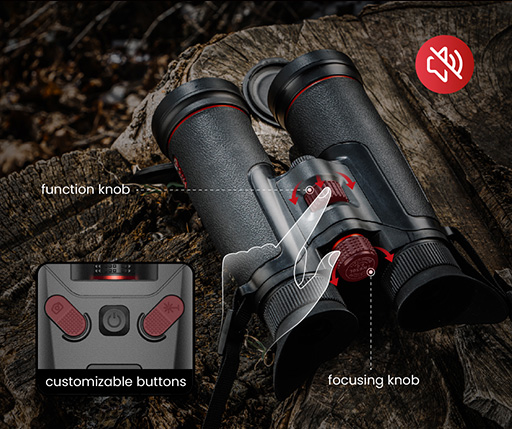

One-Handed Focusing Simple, Silent Operation

The minimalist, silent button layout features multi-functional rotary knobs and customizable buttons, greatly simplifying operation. Paired with an updated intuitive UI, you simply scroll to select and click to confirm.
Flexible Charging Unlimited Runtime

The new dual battery system brings a versatile charging solution: the built-in battery supports 18-watt fast charging, reaching 80% charge in just one hour. The replaceable standard 18650 battery supports hot swapping during operation, ensuring uninterrupted use.
Laser Rangefinder Precision Targeting

The TN 2.0 Series integrates a 1500m laser rangefinder, GPS, digital compass and gyroscope—delivering pinpoint accuracy for target location in the field.
Premium Visuals Algorithm-Optimized

The TN 2.0 Series utilizes a high-sensitivity detector with a 1920×1080 AMOLED display delivers razor-sharp clarity—further enhanced by the proprietary Hyper-light algorithm.

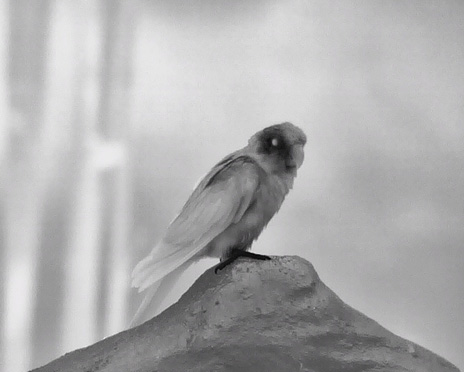

Media Gallery

Technical Parameters

Model

TN650L 2.0

添加对比

Sensor
Type	Uncooled VOx Infrared Detector, 8 to 14μm
Resolution	640×512@12μm
NETD	18mK
Frame rate	50Hz

Lens
Objective lens	50mm, F1.0
Field of view	8.2°×5.0°
FOV m@100m	14×9
Magnification	3.9x~31.2x
Detection range	2600m/2800yd
Focus	Manual

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
