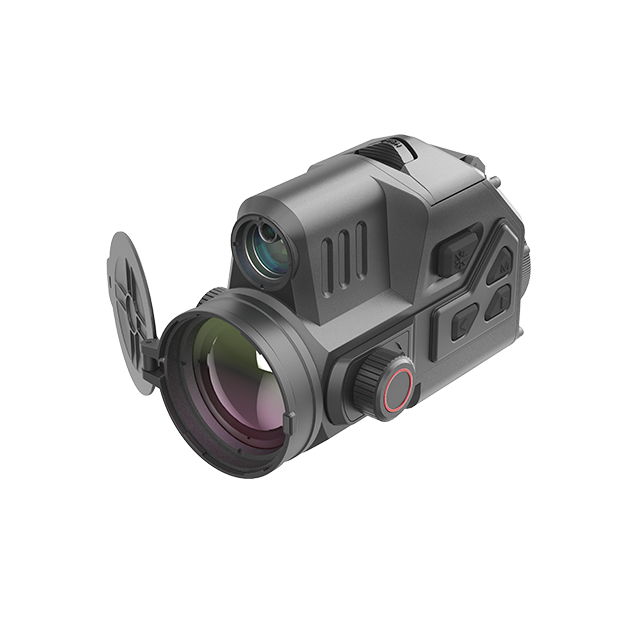

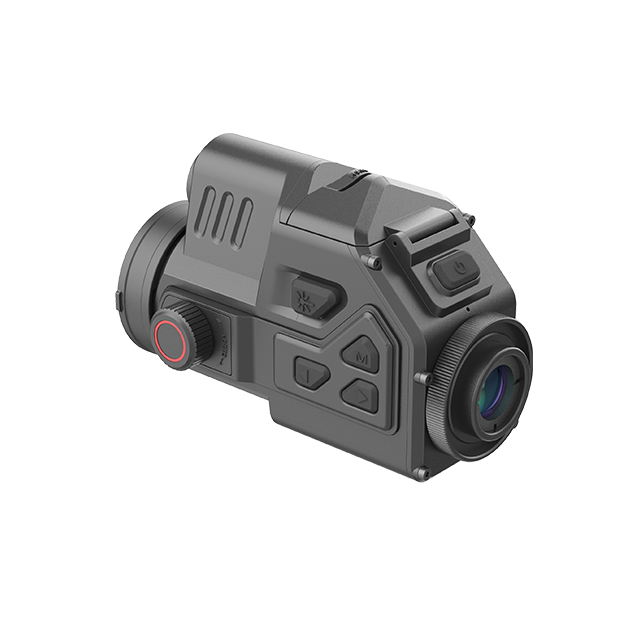

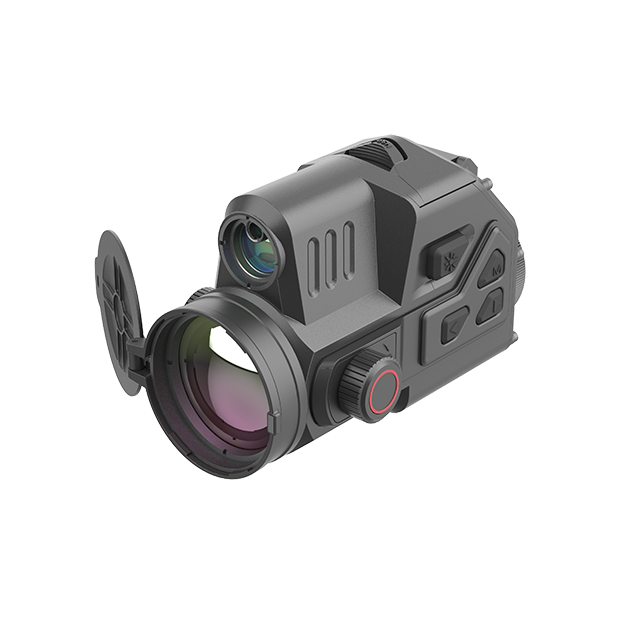

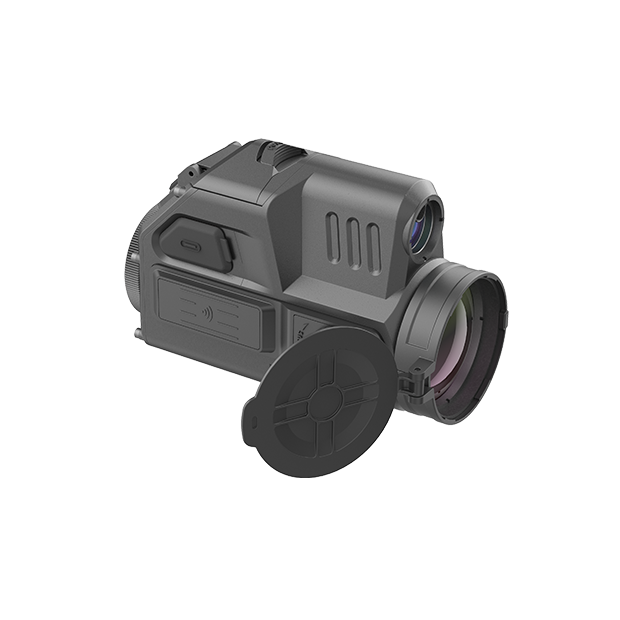

TB650LP

Thermal Imaging Attachment

After an in-depth hardware upgrade and software optimization, the TB LRF Pro Series combines precision and portability. Its appearance remains light without reducing professionalism at all: built-in laser rangefinder can reach an ultra-long distance of up to 1,000 meters; two batteries empower a longer operating time; full HD AMOLED display brings a rich and detailed visual experience; it also supports intelligent functions such as image tracing, automatic recording after each shot, etc.

  • 20mK
    NETD
  • 1920x1080
    Display
  • 1000m
    Laser rangefinder
  • IP68
    Encapsulation
  • 2-472.png
  • 1.png
  • 3.png
  • 4.png
  • 5.png

Product Features

  • 12um infrared detector

    TB LRF Pro Series adapts the high-sensitive 12um infrared detector with NETD down to 20mK. The advanced detector can distinguish the slightest differences and changes in temperature.

  • FuII-HD 1920x1080 AMOLED display

  • 1000m laser rangefinder

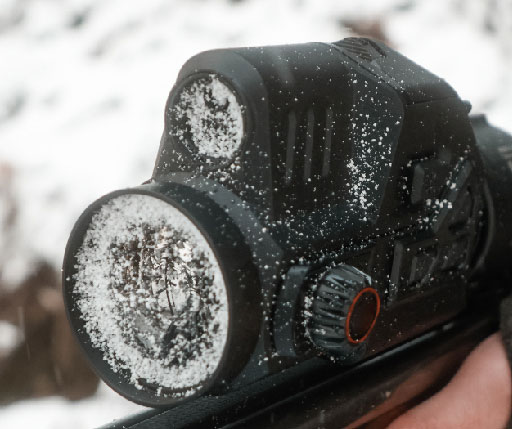

  • IP68 dustproot & waterproof

  • 6671260a276cd.jpg

Technical Parameters

Model

TB650LP

添加对比

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50Hz
Lens
Objective lens 50mm, F1.0
Field of view 8.8°×7°
FOV m@100m 15×12
Magnification 1x
Detection range 2600m/2800yd
Focus Manual

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
