TB650P

Thermal Imaging Attachment

The TB Pro Series perfectly balances precision and portability. The magnesium alloy housing decreases weight while increasing precision. The weights are over 20% lighter than those of other similar products. It is also more compact than our previous clip-on. Meanwhile, a Full-HD AMOLED display is capable, a wider viewing angle, and richer color. It is the ideal partner for relax hunting.

20mK

NETD
1920×1080

AMOLED Display
2600m

Detection Range
IP68

Encapsulation

Product Brochure

Product Features

12μm infrared detector

TB Pro Series adapts the high-sensitive 12μm infrared detector with NETD down to 20mK. The advanced detector can distinguish the slightest differences and changes in temperature.
50mm focal length

TB Pro Series utilizes a longer focal length of 50mm to provide a longer observation distance and more image details than the common lens of 25/35mm.
2600m detection range

A maximum detection range of 2600m, is capable of detecting targets in a long distance, which will help you to see farther and observe more in the outdoors.

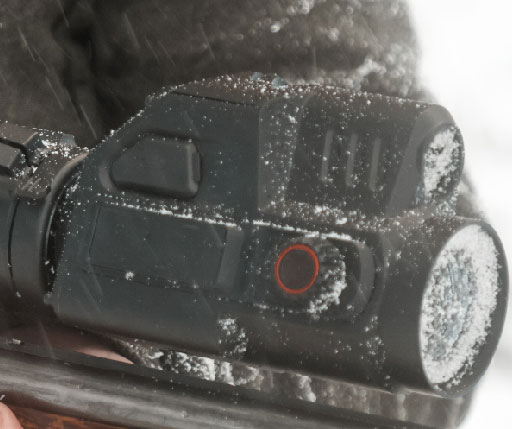

High protective IP68

The high protective features of lP68 dustproof and waterproof, 1000G/ms shock resistance, support your outdoor observation, hunting, or rescue tasks even in rain, fog, or mist weather.
FuII-HD AMOLED display

The 0.39" 1920x1080 high-definition AMOLED screen, allows for a visual experience with vibrant colors and excellent image quality, significantly enhancing the comfort of observation.

Technical Parameters

Model

TB650P

添加对比

Sensor
Type	Uncooled VOx Infrared Detector, 8 to 14μm
Resolution	640×512@12μm
NETD	20mK
Frame rate	50Hz

Lens
Objective lens	50mm, F1.0
Field of view	8.8°×7°
FOV m@100m	15×12
Magnification	1x
Detection range	2600m/2800yd
Focus	Manual

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
