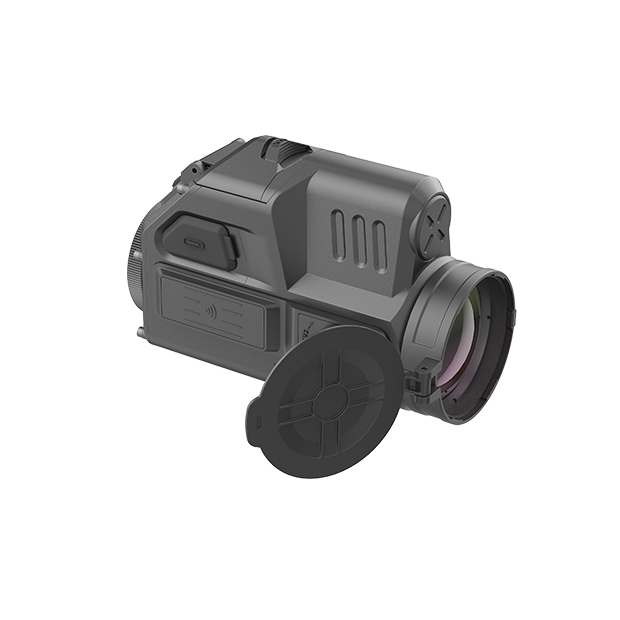

TB1250P

Thermal Imaging Attachment

The TB Pro Series perfectly balances precision and portability. The magnesium alloy housing decreases weight while increasing precision. The weights are over 20% lighter than those of other similar products. It is also more compact than our previous clip-on. Meanwhile, a Full-HD AMOLED display is capable, a wider viewing angle, and richer color. It is the ideal partner for relax hunting.

18mK

NETD
1920×1080

AMOLED Display
2600m

Detection Range
IP68

Encapsulation

Product Brochure

Product Features

1280×1024 infrared resolution, Mega-Pixel detector

TB Pro Series adapts the high-sensitive 1280×1024@12μm infrared detector with NETD down to 18mK. The advanced detector can distinguish the slightest differences and changes in temperature.
50mm focal length

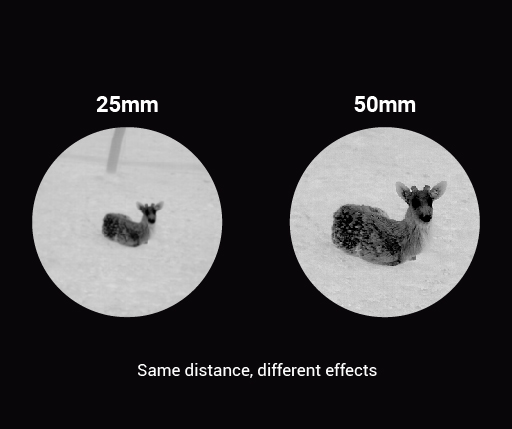

TB Pro Series utilizes a longer focal length of 50mm to provide a longer observation distance and more image details than the common lens of 25/35mm.
2600m ultra-long detection range

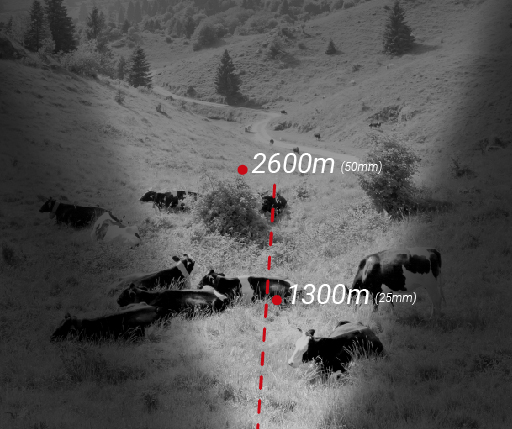

The maximum detection range of 2600m, is capable of detecting targets in an ultra-long distance, which will help you observe more details and see farther in the outdoors.
High protective IP68

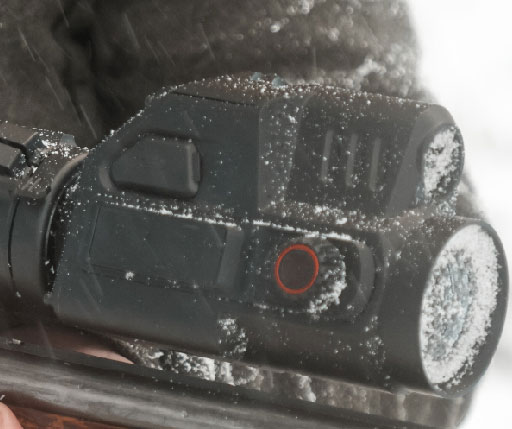

The high protective features of IP68 dustproof and waterproof, 1000G/ms shock resistance, support your outdoor observation, hunting, or rescue tasks even in rain, fog, or mist weather.
Full-HD AMOLED display

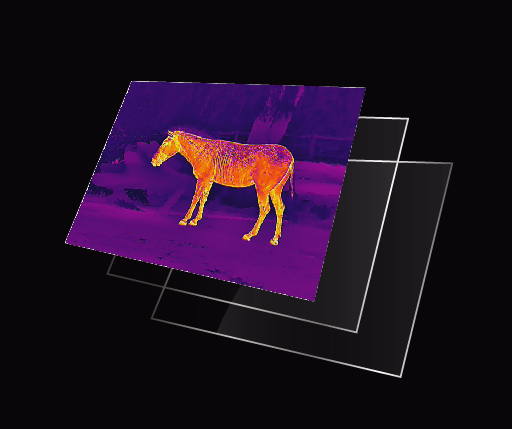

The 0.39” 1920x1080 high-definition AMOLED screen, allows for a visual experience with vibrant colors and excellent image quality, significantly enhancing the comfort of observation.

Technical Parameters

Model

TB1250P

添加对比

Sensor
Type	Uncooled VOx Infrared Detector, 8 to 14μm
Resolution	1280×1024@12μm
NETD	18mK
Frame rate	50Hz/120Hz

Lens
Objective lens	50mm, F1.0
Field of view	17.5°×14°
FOV m@100m	31×25
Magnification	1x
Detection range	2600m/2800yd
Focus	Manual

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
