TB630
Clip-on Thermal Imaging Attachment
The TB Series bridges the gap between precision and portability. The magnesium alloy housing decreases weight while increasing precision. The weights are over 20% lighter than those of other similar products. It is also more compact than our previous clip-on. Meanwhile, a Full-HD AMOLED display is capable, a wider viewing angle, and richer color. It is the ideal partner for relax hunting.
-
NETD 20mKHigh sensitivity
-
1920x1080Display
-
12hOperating time
-
IP68Encapsulation
Product Features
-
12μm high sensitivity infrared detector
By utilizing a highly sensitive IR detector with a NETD of 20mK, even the slightest temperature differences can be distinguished, resulting in sharper and clearer imaging.
-
1920x1080 AMOLED Display
-

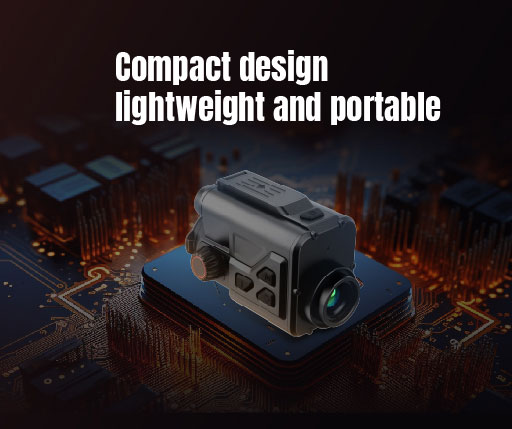

Compact design, lightweight and portable
-
Blind-mountable universal battery
-
12-hour Battery Life
-
IP68 Conquering Wind and Rain
Technical Parameters
Model
TB630
添加对比
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 12.5°×10° | |||
| FOV m@100m | 22×17 | |||
| Magnification | 1x | |||
| Detection range | 1800m/1950yd | |||
| Focus | Manual | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
