TD633

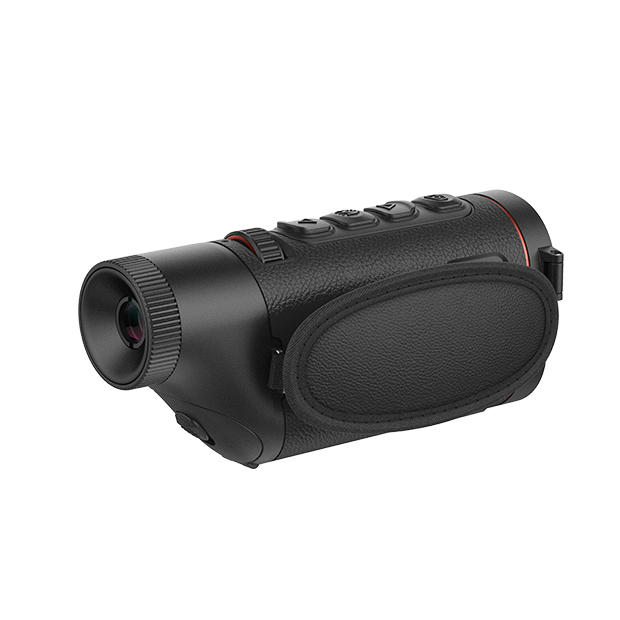

Handheld Thermal Imaging Monocular

The TD Gen3 Series handheld thermal imaging monocular, compact in design, yet powerful in function. The focusing roller allows for convenient one-handed operation, while the symmetrical ergonomic design enables flexible handling with either hand. With an impressive 12-hour battery life and IP67, it is well-equipped to handle various outdoor challenges. Featuring Wi-Fi connection, it enhances the efficiency and enjoyment of your exploration.

IR Resolution

640×512@12μm
NETD

20mK
Detection range

1800m/1950yd
Encapsulation

IP67

Product Brochure

Product Features

High-sensitivity detector, NETD down to 20mK

The TD Gen3 Series features 12μm infrared detector with 600×512 and 400×300 resolutions, and offers multiple focal lengths, delivering impressively crisp images even in complete darkness.

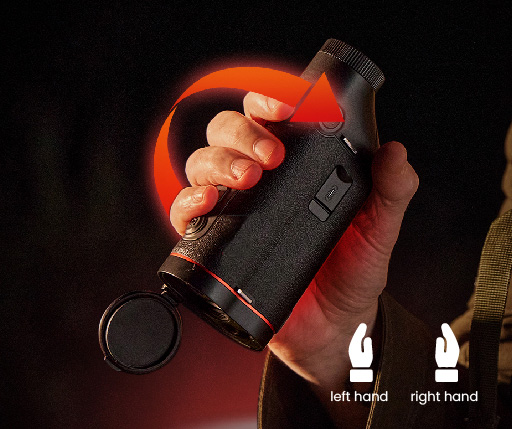

Ambidextrous design, one-handed operation

The symmetrical housing design allows for easy operation with both left and right hands. Its button layout is ergonomically crafted to suit user habits, enabling one-handed operation.
Fine-tuning focus, scroll with fingers

The mini focusing roller design offers a unique experience of fast and precise fine-tuning, allowing users to adjust the focus with a simple scroll of one finger.
Upgraded visuals, enlarged AMOLED Display

Building on the previous generation, the TD Gen3 Series features a 0.36” AMOLED display with a 1280×960 resolution, delivering more vivid details and a more comfortable viewing experience.

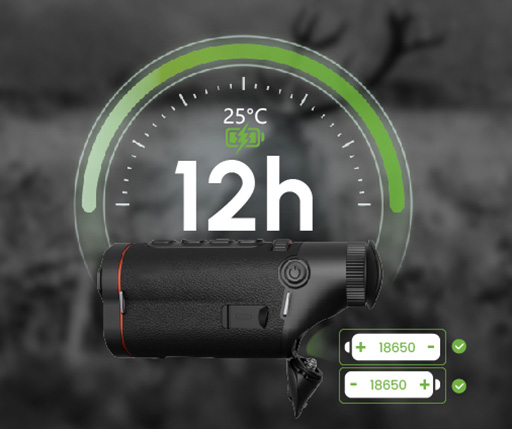

Extended battery life, uninterrupted power

During observation, exploration and stalking in the field, the TD Gen3 Series offers an impressive 12-hour runtime. The replaceable 18650 battery supports blind installation in the dark, with no need to distinguish between the positive and negative terminals.

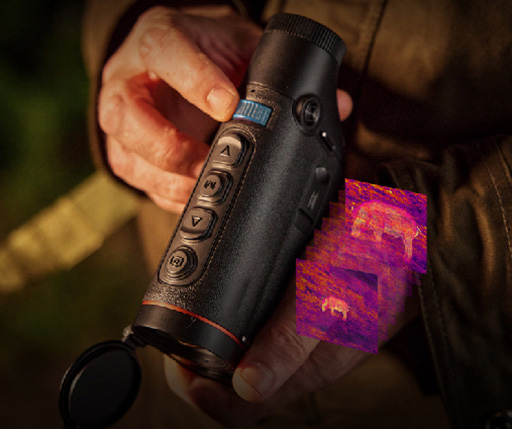

Smart recording, expanded built-in storage

The upgraded smart recording function can capture videos with sound. It’s built-in storage of up to 32GB allows users to store over 100,000 pictures without worrying about running out of space.

Technical Parameters Model TD633

Model

TD633

添加对比

Sensor
Type	Uncooled VOx Infrared Detector, 8 to 14μm
Resolution	640×512@12μm
NETD	20mK
Frame rate	50Hz

Lens
Objective lens	35mm, F1.0
Field of view	12.5°×9.4°
FOV m@100m	22×17
Magnification	1.8x~14.4x
Detection range	1800m/1950yd
Focus	Manual

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
