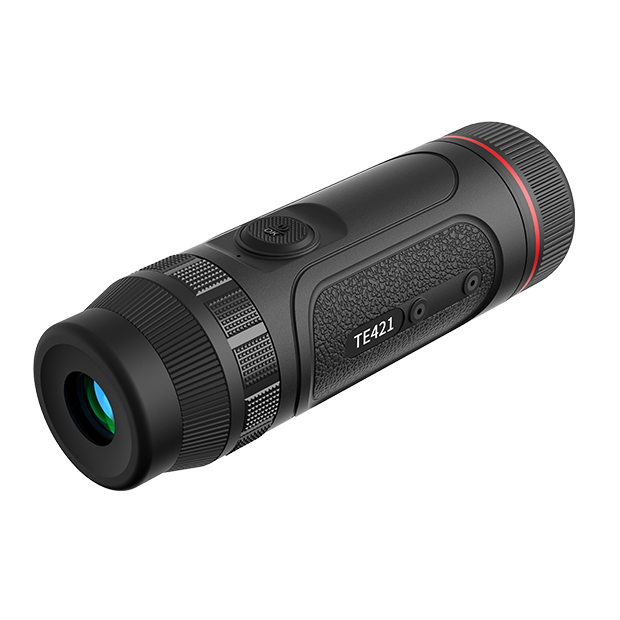

  • 4-105.png

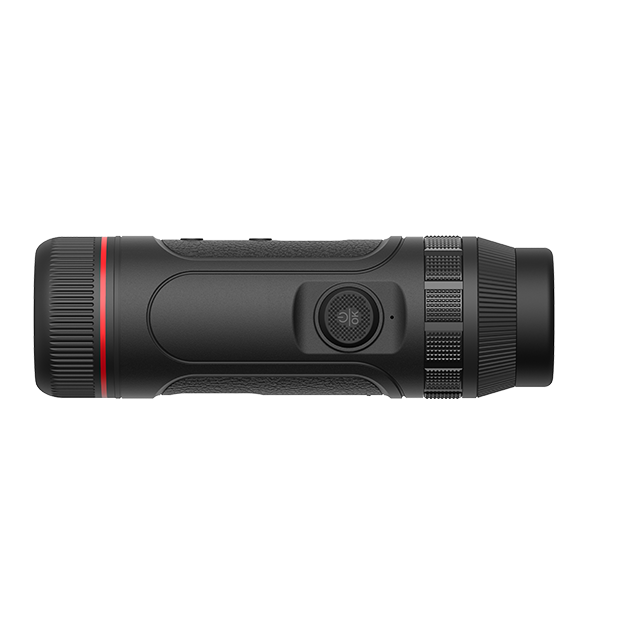

  • 5-192.png

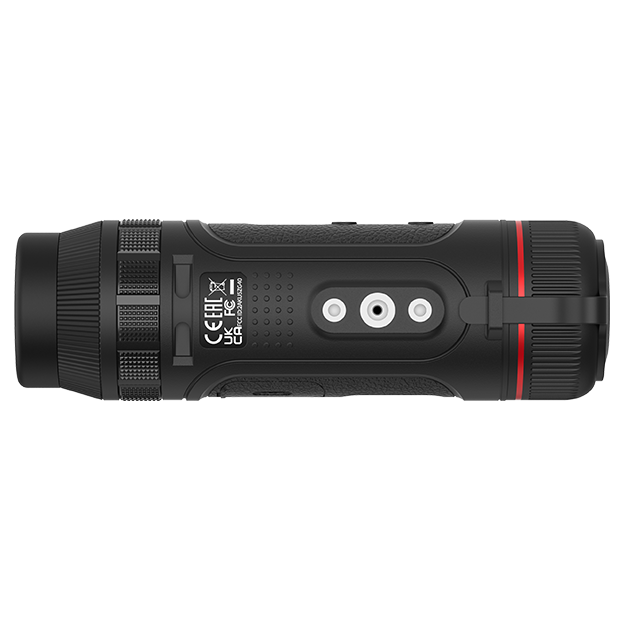

  • 3-46.png

TE421

Handheld Mini Thermal Imaging Monocular

The TE Series Handheld Thermal Imaging Monocular is a pocket-sized night vision powerhouse, offering exceptional performance at an affordable price. It is equipped with a highly sensitive infrared detector, providing multiple resolutions and lens options to meet your diverse needs in various environments. A 10-minute quick charge gives you an hour of continuous use, making it the perfect companion for your outdoor explorations.

  • Resolution
    400×300@12μm
  • Smooth Operation
    One-button control
  • Encapsulation
    IP67
  • Ultra-Lightweight
    Only 295g
  • 4-105.png
  • 5-192.png
  • 3-46.png

Product Features

  • Ultra-lightweight Effortlessly portable

    The TE Series only weighs over 200 grams with a compact, pocket-sized design, small like a mobile phone and thinner than a wristwatch, offering a comfortable grip and exceptional portability.

  • Powerful 12μm detector Sharp image quality

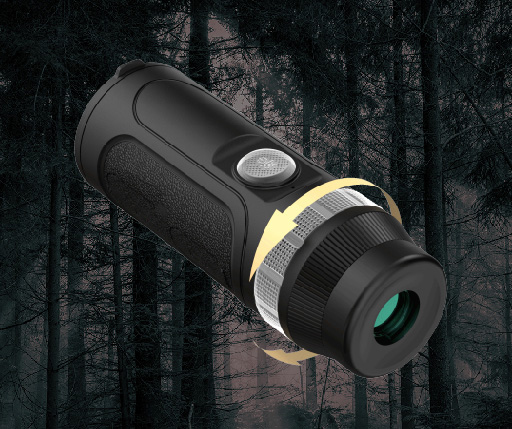

  • Smooth operation One-button, one-ring

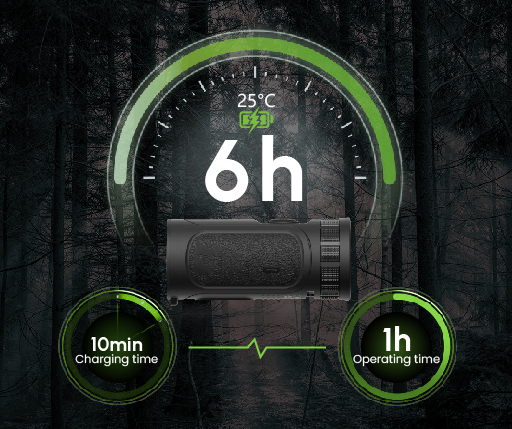

  • Extended battery 20W quick charge

  • Comfortable viewing Clear and smooth visuals

  • Audio-visual sync

  • Dual-band WiFi connection

  • 185-495.jpg

Media Gallery







Technical Parameters

Model

TE421

添加对比

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 400×300@12μm
NETD 25mK
Frame rate 50Hz
Lens
Objective lens 25mm, F1.0
Field of view 11°×8.2°
FOV m@100m 19×14
Magnification 1.9x~7.6x
Detection range 1300m/1400yd
Focus Manual

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
