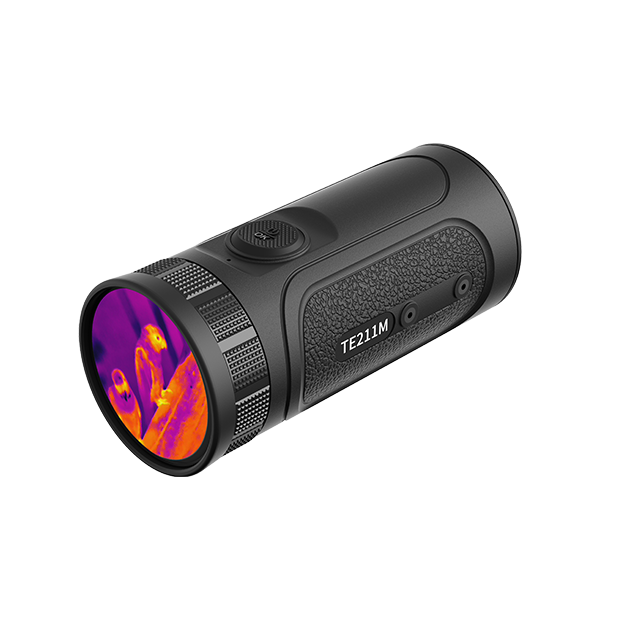

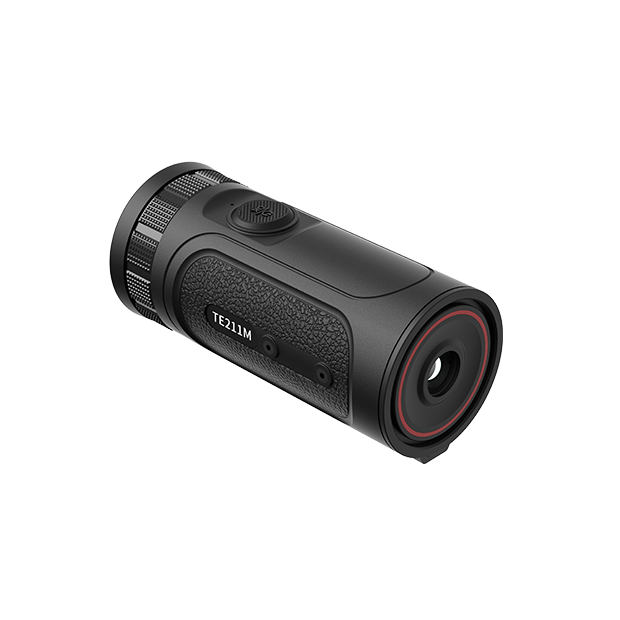

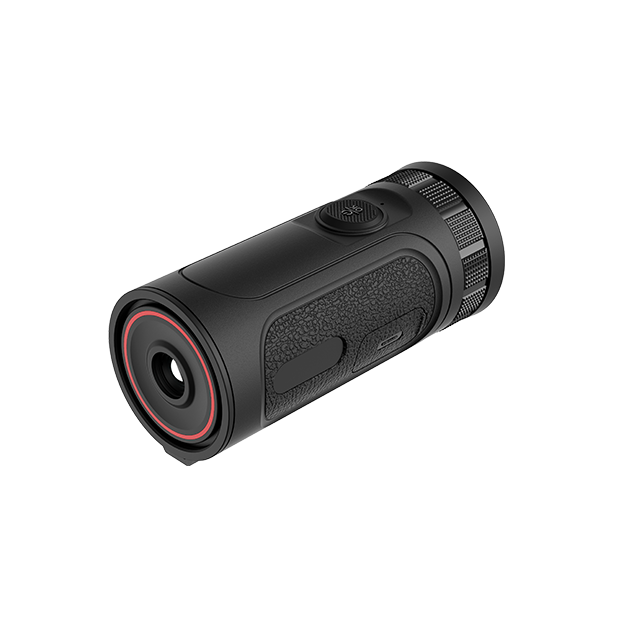

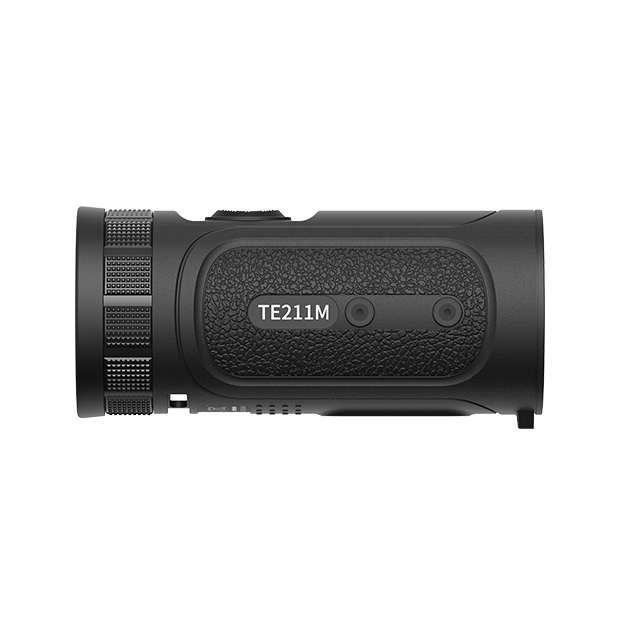

TE211M

Handheld Mini Thermal Imaging Monocular

TE Mini Series handheld thermal imaging monocular, your pocket-sized night vision companion, is equipped with a 256×192 infrared detector and a 10mm lens, providing a detection range of up to 500 meters. The integrated 1.43” AMOLED full-color touchscreen allows you to view infrared images clearly without pressing your eyes against the eyepiece, reducing eye fatigue during extended use. With just a 10-minute quick charge, it offers up to 1 hour of continuous use, making it the ideal companion by your side.

Resolution

256x192@12μm
Smooth Operation

One-button control
Encapsulation

IP67
Ultra-Lightweight

Only 205g

Product Brochure

Product Features

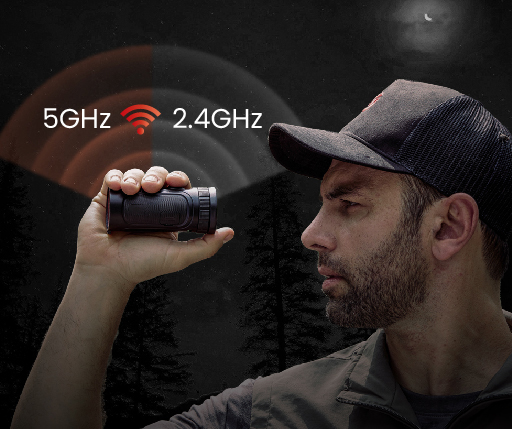

Dual-band WiFi connection

The WiFi function has been upgraded to dual-band, providing stronger connectivity. The TE Mini features faster transmission speeds and longer distances, with upgrade packages downloading in just 10 seconds and a maximum transmission distance of 26.5 meters.
Game-changing Large touch screen

The TE Mini features an innovative large touch screen that provides direct ultra-clear viewing and seamless touch control. Users can easily swipe the menu and select functions with simple touch operations.

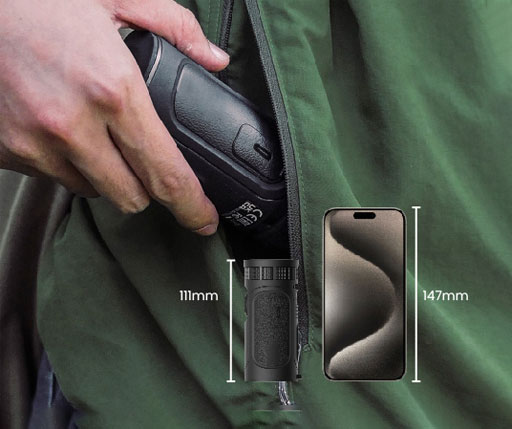

Ultimate lightweight Effortlessly portable

The TE Mini weighs only about 200 grams and features a compact, pocket-sized design that is smaller than a mobile phone and thinner than a wristwatch, offering a comfortable grip and exceptional portability.
Powerful 12μm detector Sharp image quality

Equipped with a powerful 12µm detector, the TE Mini delivers crisp image quality that distinguishes targets from the surroundings, even in dark-ness.

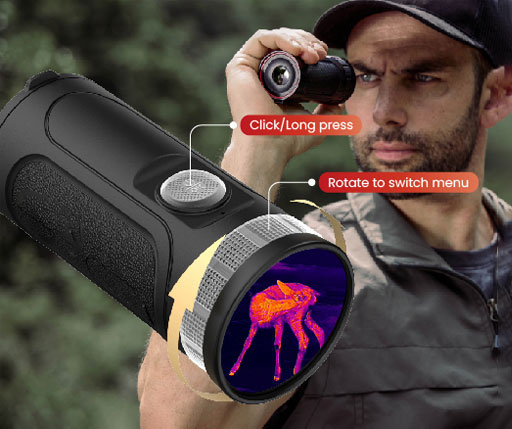

Smooth operation Simplified interaction

Drawing on years of outdoor experience, the TE Mini offers an extremely streamlined button design. With just one button and one ring, users can easily access the menu and perform various functions.
Extended battery 20W quick charge

The TE Mini integrates a built-in rechargeable battery that provides up to 6 hours of runtime. It features an advanced 20W quick charge function. With just 10-minute quick charging, you can enjoy 1 hour of continuous use, ensuring worry-free power.

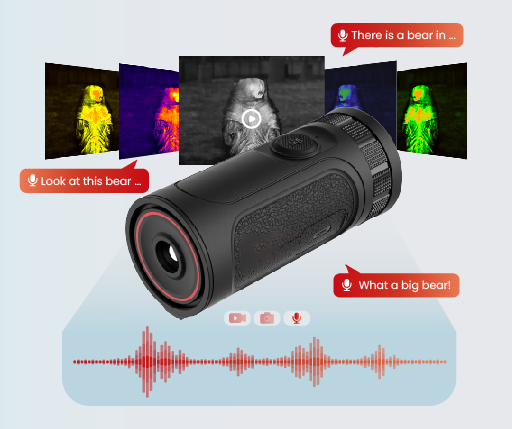

Audio-visual sync

Photos, videos, and audio recordings are all available. With 16GB built-in storage, you can flexibly capture and share exciting moments in the wild anytime and anywhere.

Solutions

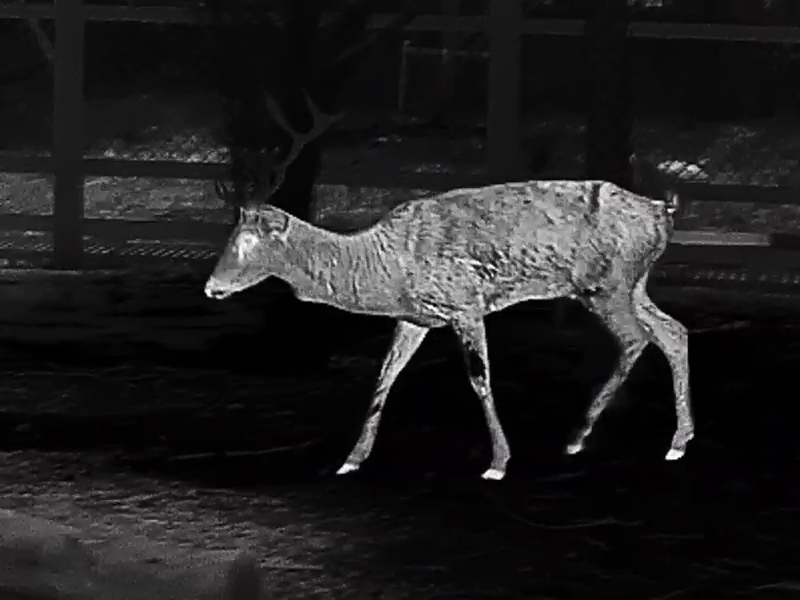

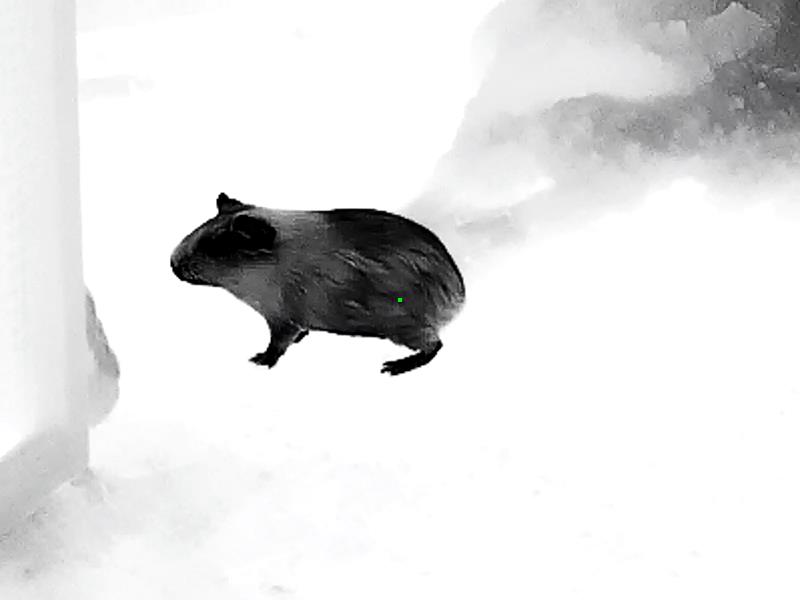

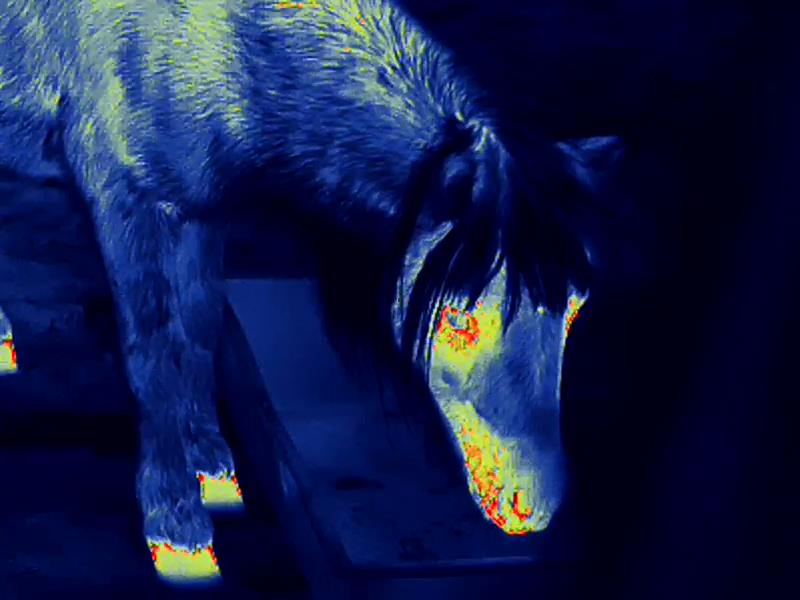

Outdoor Vision

Media Gallery

Technical Parameters

Model

TE211M

添加对比

Sensor
Type	Uncooled VOx Infrared Detector, 8 to 14μm
Resolution	256×192@12μm
NETD	30mK
Frame rate	50Hz

Lens
Objective lens	10mm, F1.0
Field of view	13.1°×13.1°
FOV m@100m	23×23
Magnification	0.4x~1.6x
Detection range	500m/550yd
Focus	Focus-free

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
