TJ650LP

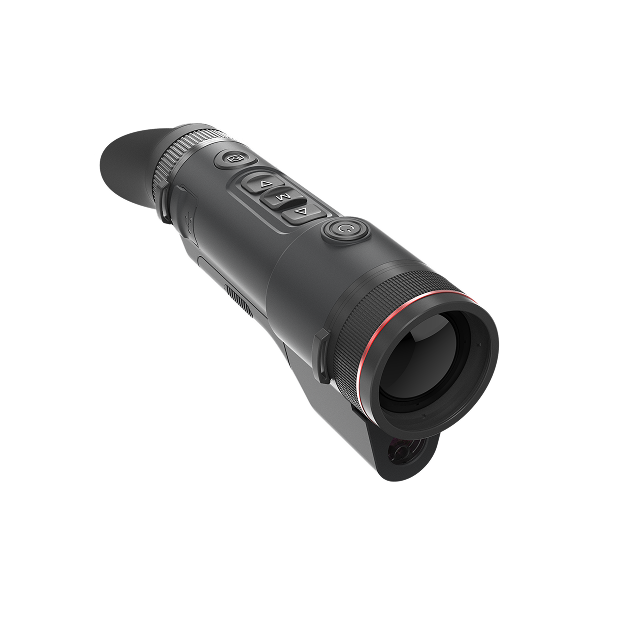

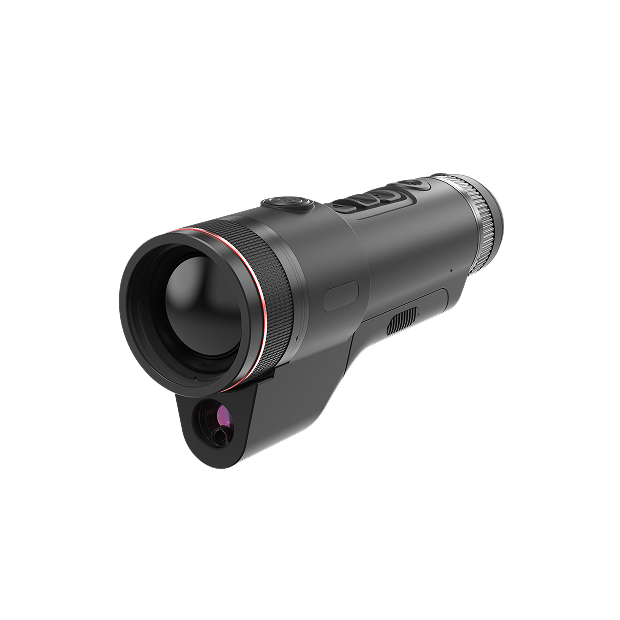

Handheld Thermal Imaging Monocular

TJ LRF Pro Series has fully upgraded its hardware configuration and software functions, bringing it to new heights in picture clarity, observation comfort, and intelligent operation. It is equipped with a 12μm high-sensitivity infrared detector, making your targets in the dark clearly visible and lifelike. 0.5" ultra-large AMOLED display presents you with a stunning visual effect like a home theater. Built-in 1500m laser rangefinder, triggered with one button, makes your adventure more secure and smooth.

NETD

20mK
Resolution

640×512@12μm
Display

0.5'' AMOLED 1600×1200
Detection range

2600m/2800yd

Product Brochure

Product Features

Advanced 12μm IR detector, NETD down to 20mK

The upgraded TJ LRF Pro Series utilizes an advanced 12μm infrared detector with a NETD down to 20mK, even the slightest temperature differences can be distinguished in complete darkness.
0.5'' AMOLED display, top-notch visual effect

The ultra-large 1600×1200 AMOLED display presents you with a stunning visual effect like a 90” home theater at a 2.5-meter distance, bringing it to new heights in picture clarity and observation comfort.

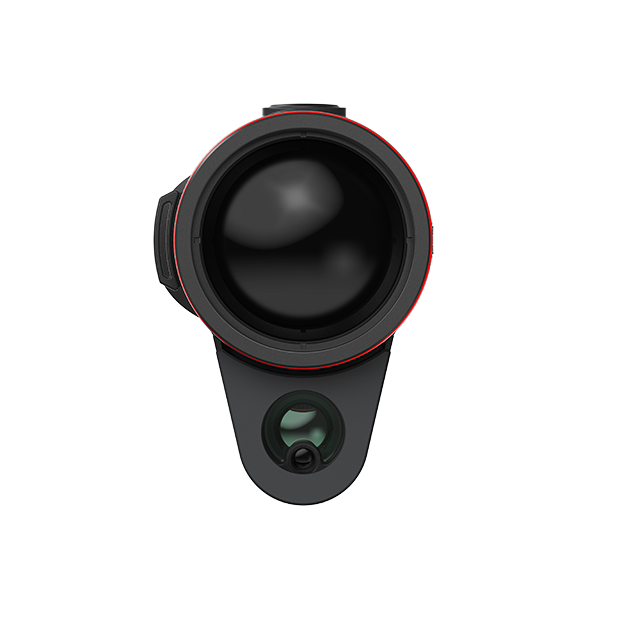

Game-changing 1500m laser ranging

The laser rangefinder module of TJ LRF Pro Series has been upgraded to achieve a remarkable breakthrough, extending the maximum measurement distance to 1500 meters.
35/50mm F1.0 lens, 2600m detection range

Multiple focal lengths give TJ LRF Pro Series convenience for long-distance observation and hunting, the 50mm F1.0 lens can detect targets up to 2600m.
Unique design for easy operation in the dark

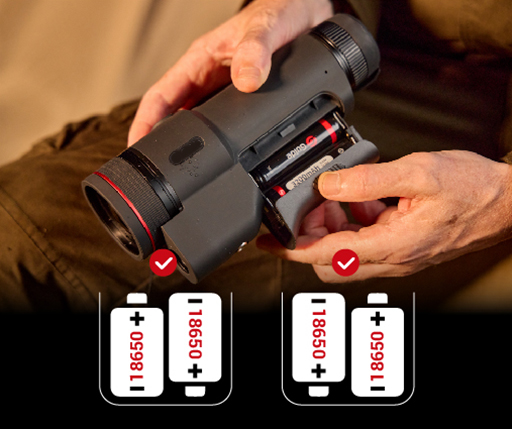

Blind-mountable universal battery
Utilizing standard 18650 batteries, equipped with a safety circuit protection design. When replacing the batteries, simply ensure that the positive and negative poles of the two cells are oriented oppositely, reducing the burden of identification and memory.

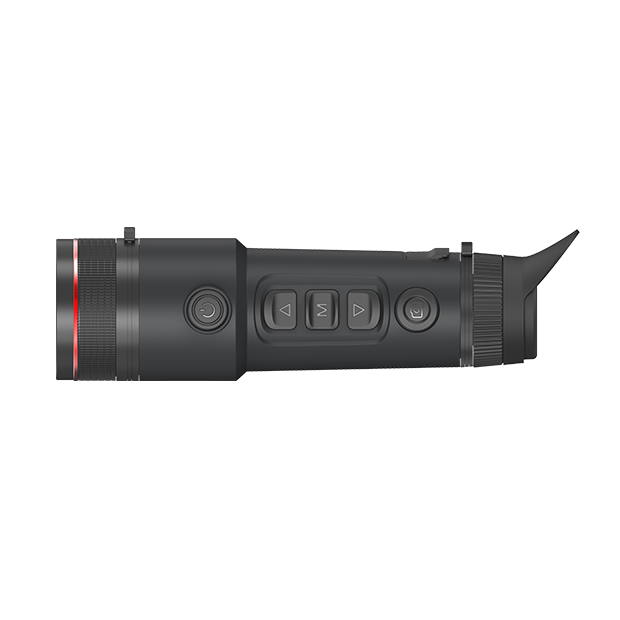

Ambidextrous design

Both left and right hands can operate easily. Left/right eye masks and hand straps can be switched in one step.
Video recording including sound

The device supports both photo and video capture, featuring a built-in microphone to ensure audio is included in your recordings.

Technical Parameters

Model

TJ650LP

添加对比

Sensor
Type	Uncooled VOx Infrared Detector, 8 to 14μm
Resolution	640×512@12μm
NETD	20mK
Frame rate	50Hz

Lens
Objective lens	50mm, F1.0
Field of view	8.8°×7°
FOV m@100m	15×12
Magnification	4.73x~37.84x
Detection range	2600m/2800yd

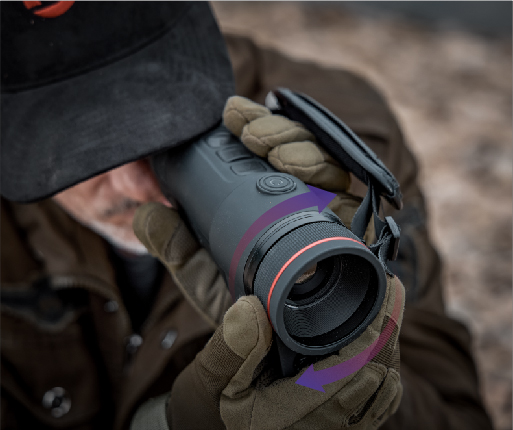

Focus	Manual

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
