TJ660LZ

Handheld Thermal Imaging Monocular

TJ LRF Zoom Series adapts an integrated 20mm/60mm DFOV lens, allowing you to switch the focal length accordingly, whether it is a large-scale search or a long-distance target identification. The high-sensitivity 12μm infrared detector and full HD display enable clear night vision. Twohanded operation, laser ranging, video recording, and up to 10 hours of battery life make it an ideal partner for your nighttime adventures.

  • NETD
    20mK
  • AMOLED display
    Full-HD 1920x1080
  • Laser range
    1000m
  • Encapsulation
    IP67
  • 149-828.png
  • TJ660LZ2.png
  • TJ660LZ4.png

Product Features

  • 12μm IR detector, NETD down to 20mK

    By utilizing a highly sensitive IR detector with a NETD down to 20mK, even the slightest temperature differences can be distinguished, resulting in sharper and clearer imaging.

  • 3x optical zoom, detection distance up to 3100m

  • Easily changing the focal lengths

  • Ultra-large display

  • 1000m laser rangefinder

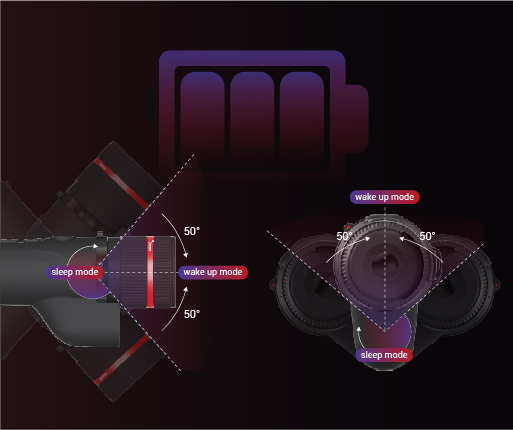

  • Intelligent sleep mode

  • guanwangchanpinxiangqingyemaidiantu512X429-03.jpg

Media Gallery




Technical Parameters

Model

TJ660LZ

添加对比

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50Hz
Lens
Objective lens 20mm, F0.9; 60mm, F1.1
Field of view 21.7×17.5; 7.3×5.9
FOV m@100m 38×31; 13×10
Magnification 1.5x~12.0x; 4.5x~36x
Detection range 1000m/1090yd; 3100m/3350yd
Focus Manual

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
