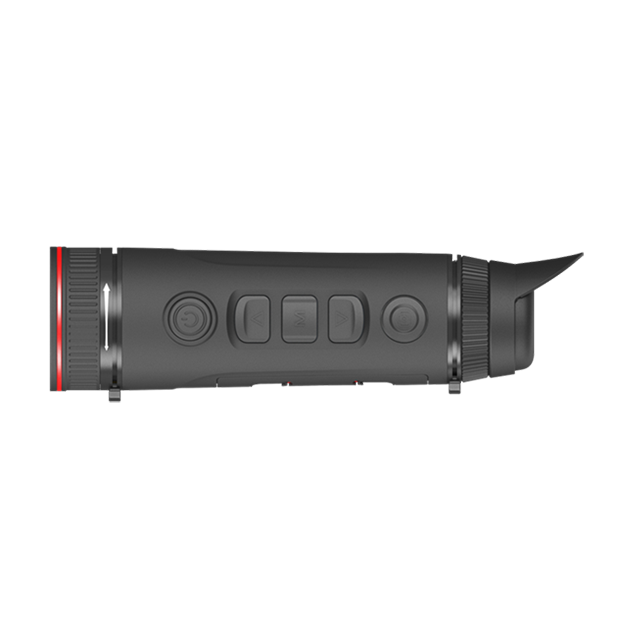

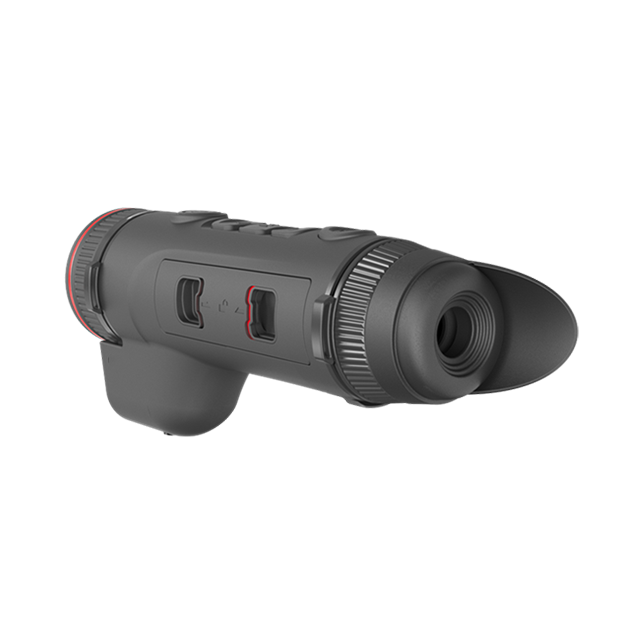

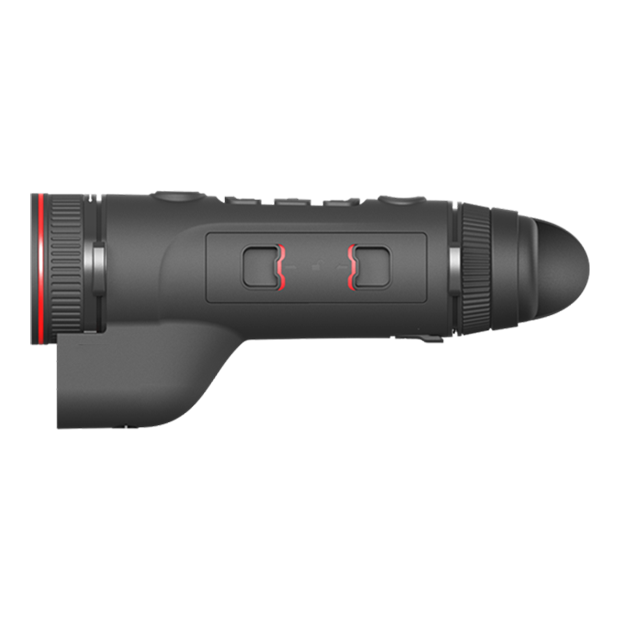

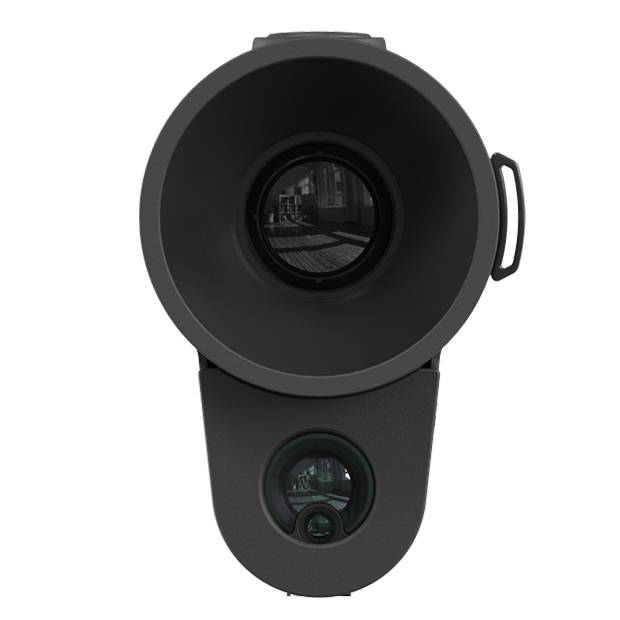

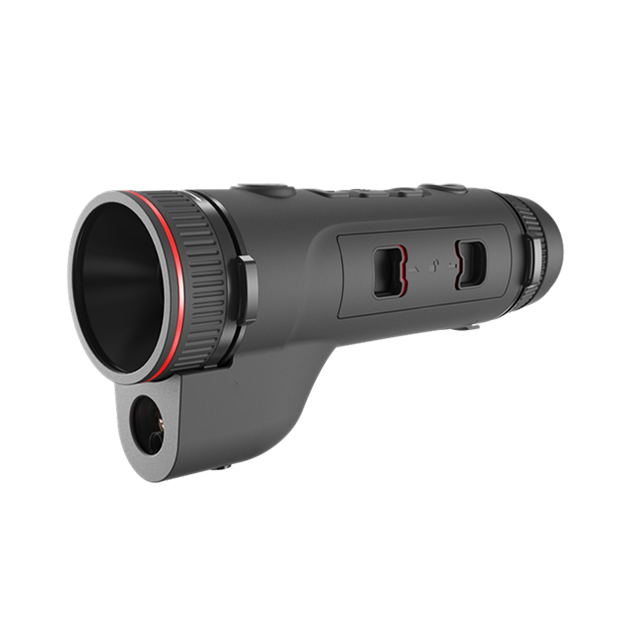

TJ650L
Handheld Thermal Imaging Monocular
Embark on nighttime explorations with the TJ LRF Series, a top pick for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, laser ranging, video recording, and a 12-hour battery life make it the perfect companion for nighttime escapades.
-
DetectorNETD 20mK
-
AMOLED displayFull-HD 1920x1080
-
Laser range1000m
-
EncapsulationIP67
Product Features
-
Welcome to the big screens
TJ LRF Series - Handheld Thermal Imaging Monocular
-

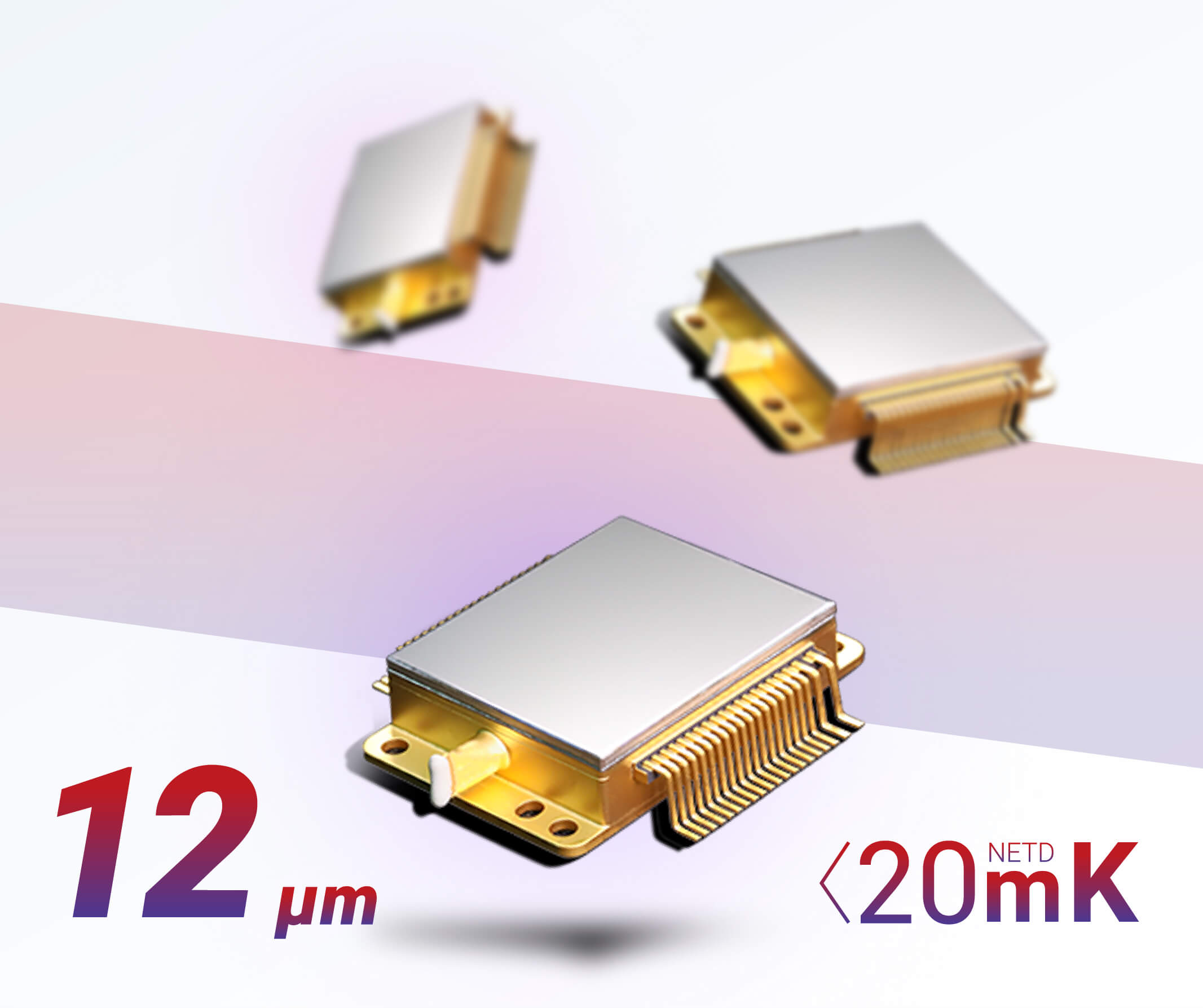

12um high sensitivity infrared detector
-
1920 X 1080 AMOLED Display
-

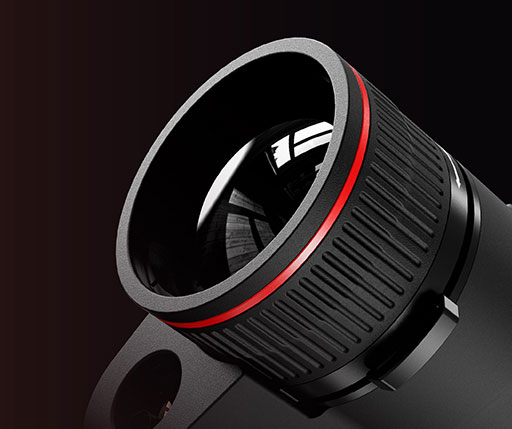

25/35/50mm F1.0 focal length
-
1000m laser ranging
Technical Parameters
Model
TJ650L
添加对比
Sensor | ||||
---|---|---|---|---|
Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
Resolution | 640×512@12μm | |||
NETD | 20mK | |||
Frame rate | 50Hz |
Lens | ||||
---|---|---|---|---|
Objective lens | 50mm, F1.0 | |||
Field of view | 8.8°×7° | |||
FOV m@100m | 15×12 | |||
Magnification | 3.79x~30.32x | |||
Detection range | 2600m/2800yd | |||
Focus | Manual |
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
