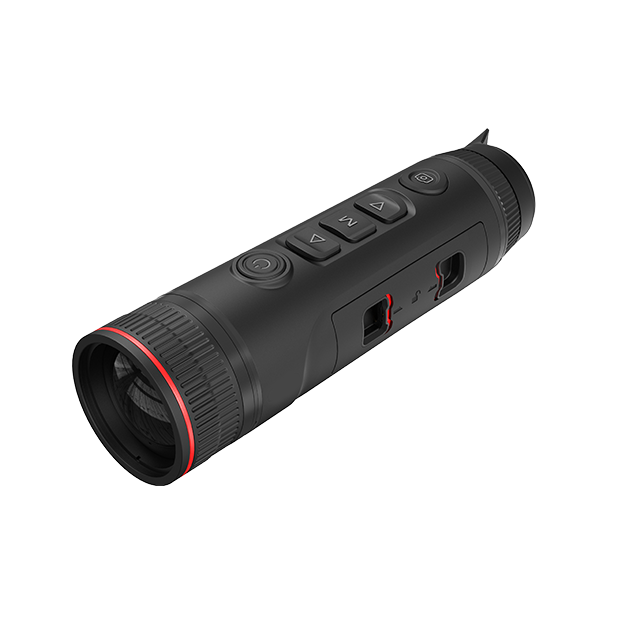

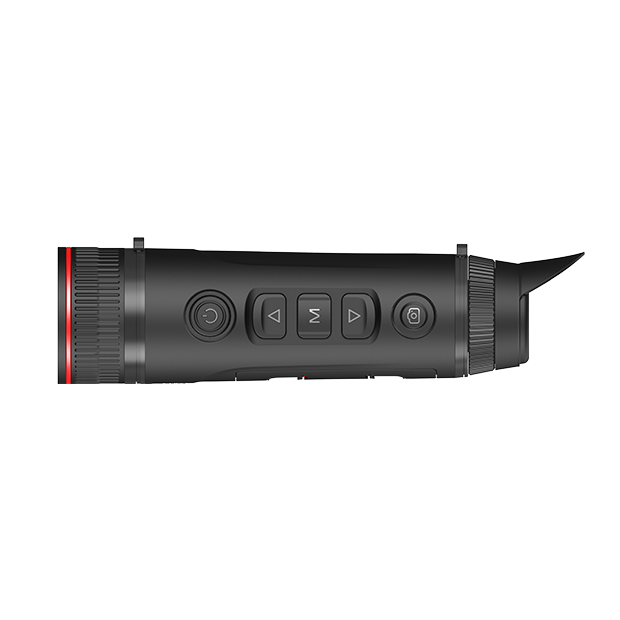

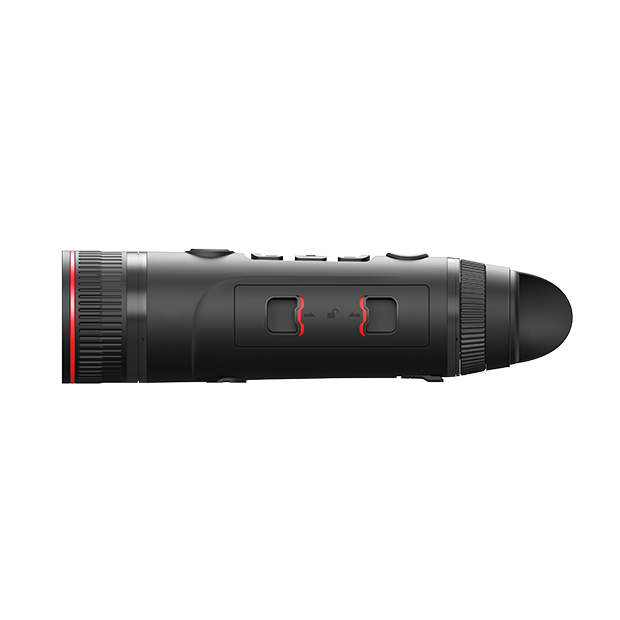

TJ650
Handheld Thermal Imaging Monocular
Embark on nighttime explorations with the TJ Series, a top pick for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, video recording, and a 12-hour battery life make it the perfect companion for nighttime escapades.
-
DetectorNETD 20mK
-
Battery12 hrs
-
AMOLED displayFull-HD 1920x1080
-
EncapsulationIP67
Product Features
-

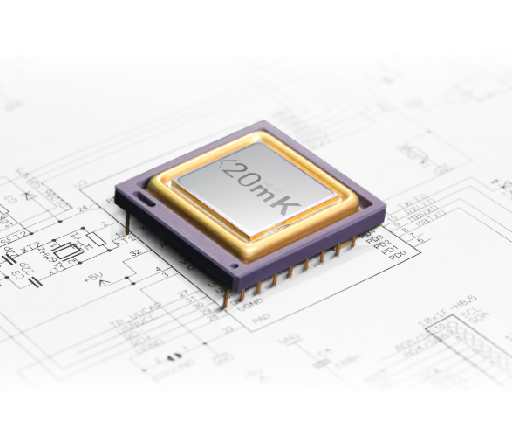

12um high sensitivity infrared detector
By utilizing a highly sensitive lR detector with a NETD down to 20mK, even the slightest temperature differences can be distinguished, resulting in sharper and clearer imaging.
-

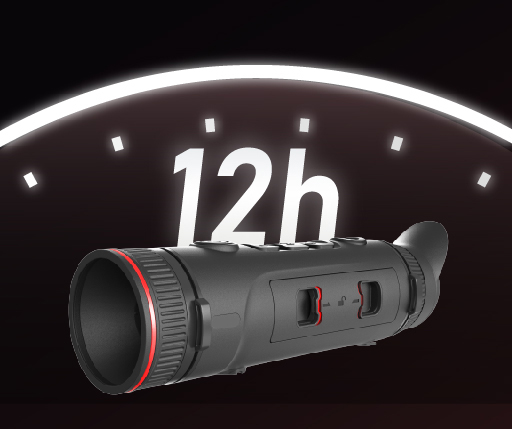

12h operating time
-

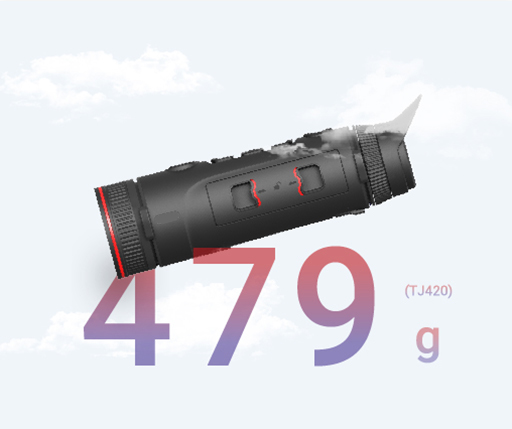

Lightweight
-
Full-HD 1920x1080 AMOLED display
-
IP67 Waterproof rating

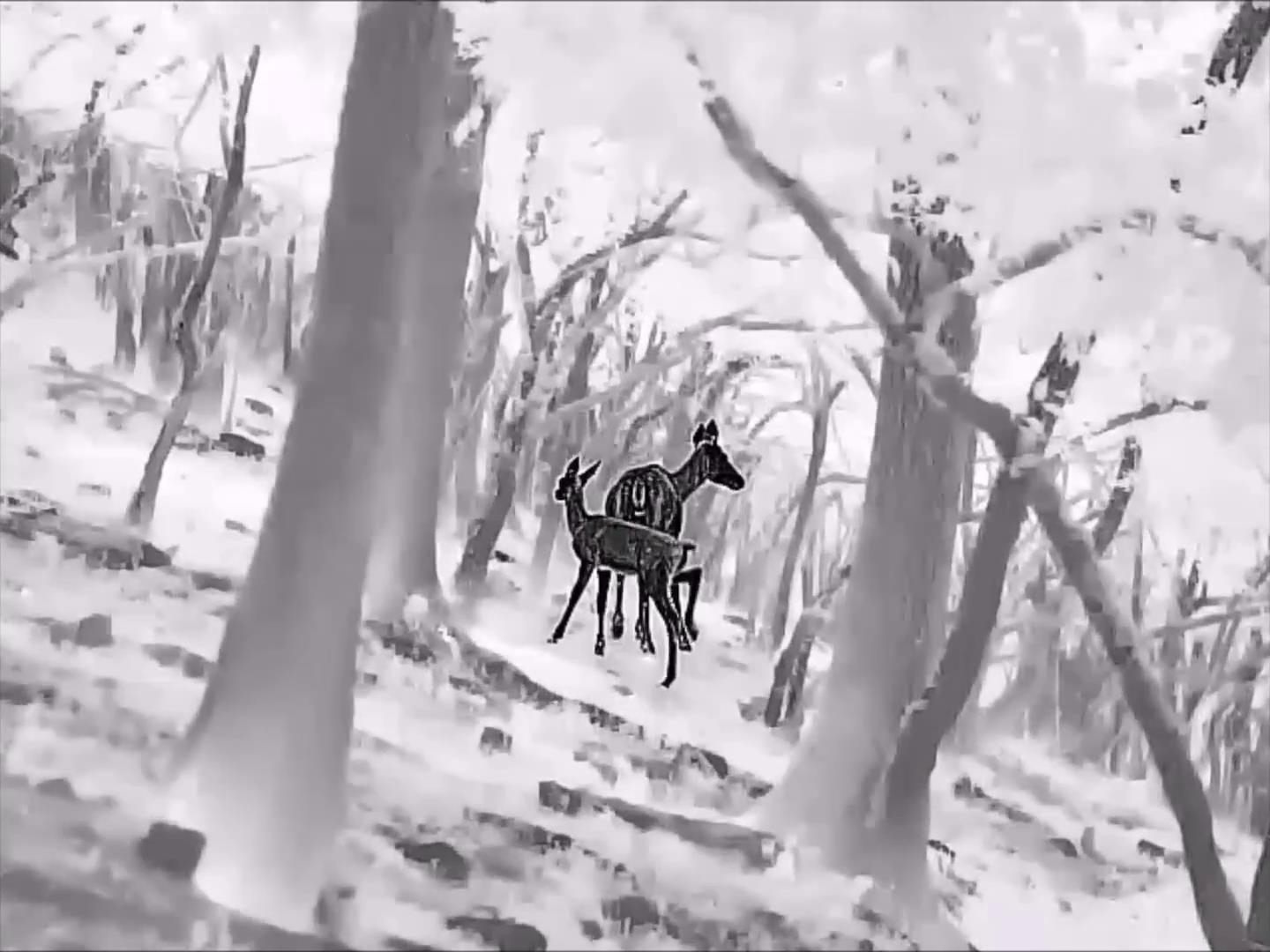

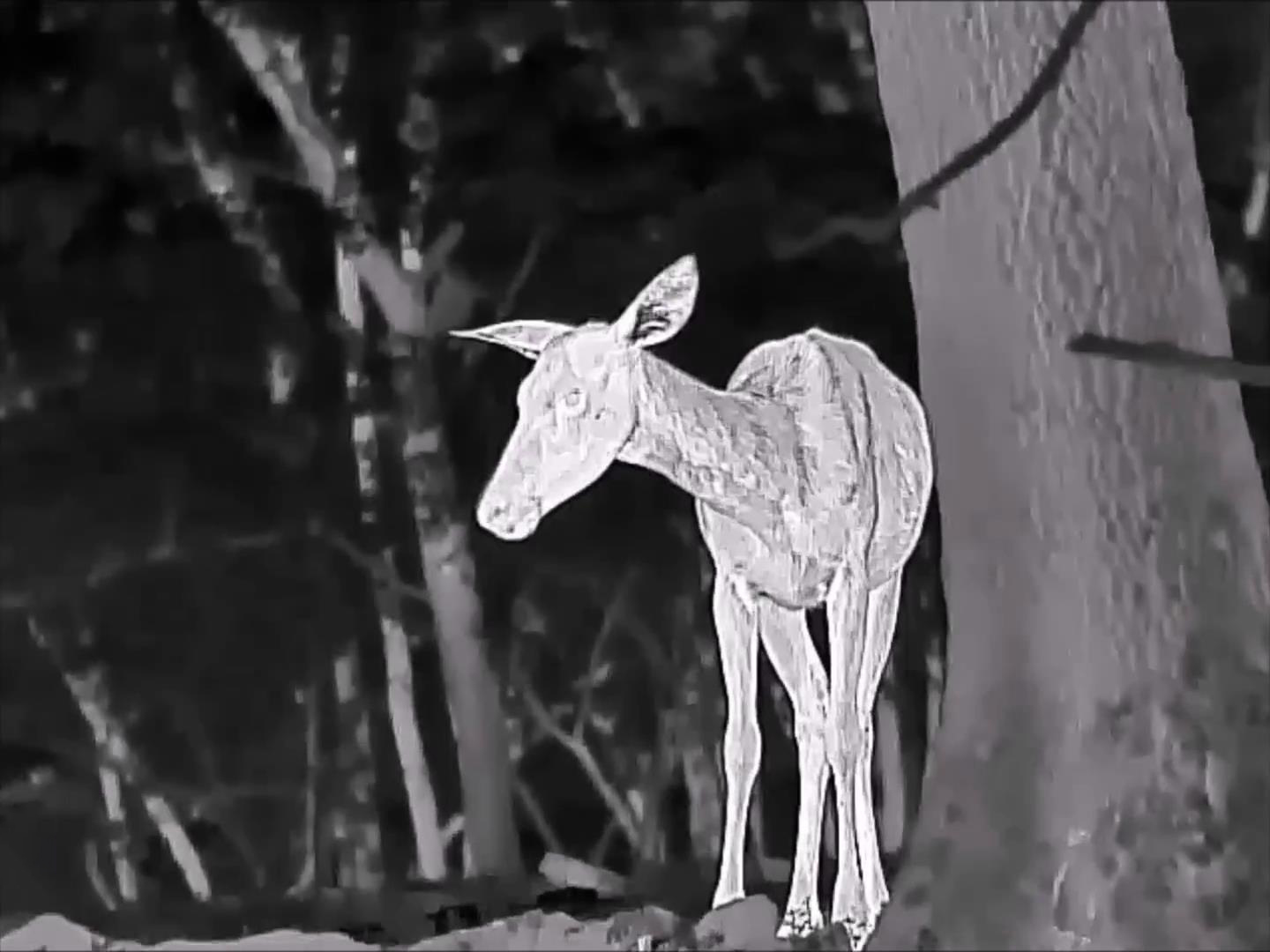

Media Gallery
Technical Parameters
Model
TJ650
添加对比
Sensor | ||||
---|---|---|---|---|
Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
Resolution | 640×512@12μm | |||
NETD | 20mK | |||
Frame rate | 50Hz |
Lens | ||||
---|---|---|---|---|

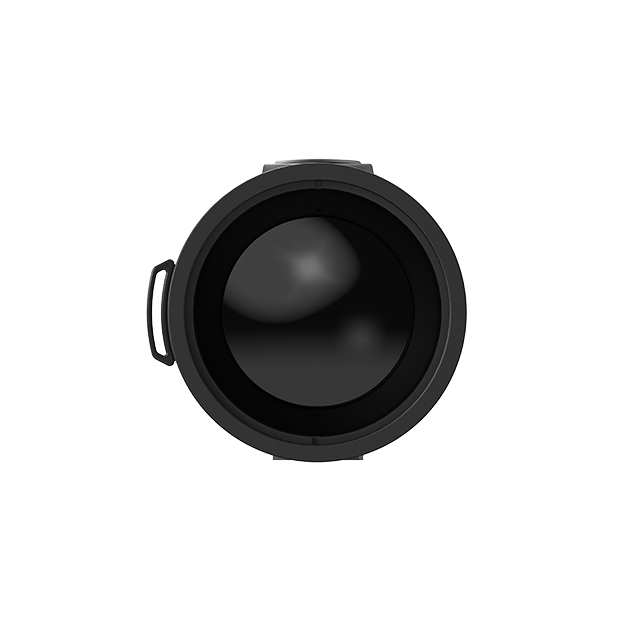

Objective lens | 50mm, F1.0 | |||
Field of view | 8.8°×7° | |||
FOV m@100m | 15×12 | |||
Magnification | 3.79x~30.32x | |||
Detection range | 2600m/2800yd | |||
Focus | Manual |
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
