TJ630

Handheld Thermal Imaging Monocular

Embark on nighttime explorations with the TJ Series, a top pick for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, video recording, and a 12-hour battery life make it the perfect companion for nighttime escapades.

  • Detector
    NETD 20mK
  • Battery
    12 hrs
  • AMOLED display
    Full-HD 1920x1080
  • Encapsulation
    IP67
  • 41.png
  • 42-292.png
  • 43.png
  • 44.png
  • 45.png

Product Features

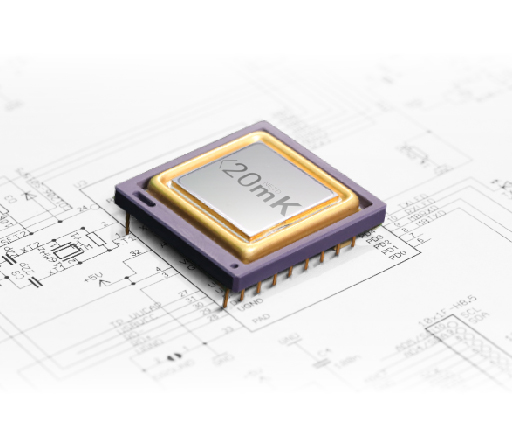

  • 12um high sensitivity infrared detector

    By utilizing a highly sensitive lR detector with a NETD down to 20mK, even the slightest temperature differences can be distinguished, resulting in sharper and clearer imaging.

  • 12h operating time

  • Lightweight

  • Full-HD 1920x1080 AMOLED display

  • IP67 Waterproof rating

  • 54.jpg

Media Gallery




Technical Parameters

Model

TJ630

添加对比

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50Hz
Lens
Objective lens 35mm, F1.0
Field of view 12.5°×10°
FOV m@100m 22×17
Magnification 2.66x~21.28x
Detection range 1800m/1950yd
Focus Manual

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
