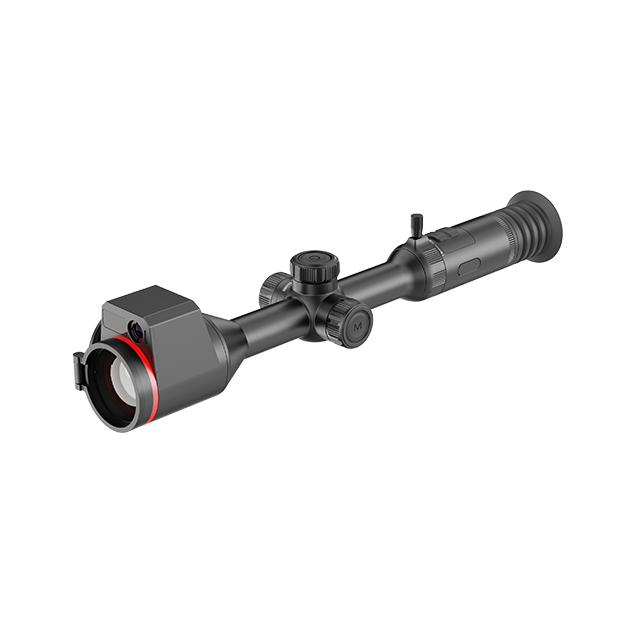

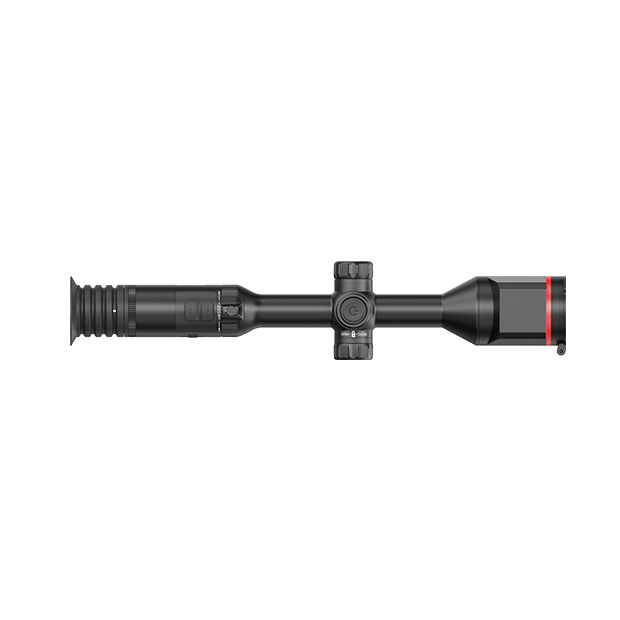

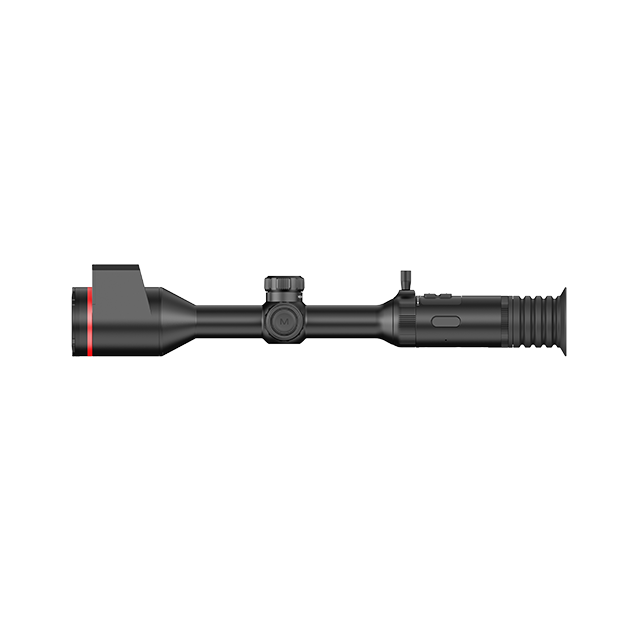

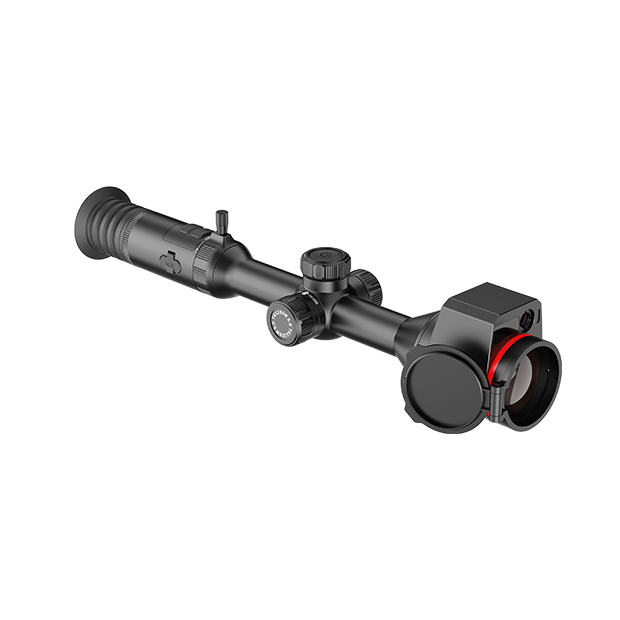

TU650M 3.0
Thermal Imaging Scope
The TU 3.0 Series redefines precision optics with advanced thermal imaging, modular design, and AI powered performance. Offered in six sub-series—from ultra-light compact units to dual-spectrum, long-range solutions—they meet the demands of hunters, professionals, and tactical users alike. Featuring AI enhanced imaging, shutterless design, ergonomic controls, IP68 protection, and dual-band Wi-Fi, they deliver reliable performance in any environment.
-
IR Resolution640×512@12μm
-
NETD18mK
-
Digital Resolution1920×1080@2.9μm
-
Detection range2600m
Product Features
-
Thermal & Optical All-Day. All-Weather
The TU MUO 3.0 Series integrates thermal imaging and visible light with day, night and low-light modes. It’s the ideal device for both day and nighttime hunting — whether in the woods, bushes, rain, or snow.
-
Hyper-Light Algorithm Ultra-Premium Visuals
-
QHD AMOLED Display Comfortable Viewing
-
Dual Battery Design Worry-Free Power
-
Smart Recording Best Moments Captured
Media Gallery
Technical Parameters
Model
TU650M 3.0
添加对比
Sensor | ||||
---|---|---|---|---|
Type | Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS | |||
Resolution | Thermal: 640×512@12μm (NETD 18mK); Digital: 1920×1080@2.9μm | |||
Frame rate | 50 Hz |
Lens | ||||
---|---|---|---|---|
Objective lens | Thermal: 50mm, F1.0; Digital: 35mm, F4.0 | |||
Field of view | Thermal: 8.8°×7.0°; Digital: 6.4°×5.1° | |||
FOV m@100m | Thermal: 15×12; Digital: 11×9 | |||
Magnification | Thermal: 3.7x~29.6x; Digital: 3.7x~29.6x | |||
Detection range | Thermal: 2600m/2800yd; Digital: 500m/550yd | |||
Focus | Manual |
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
