E1

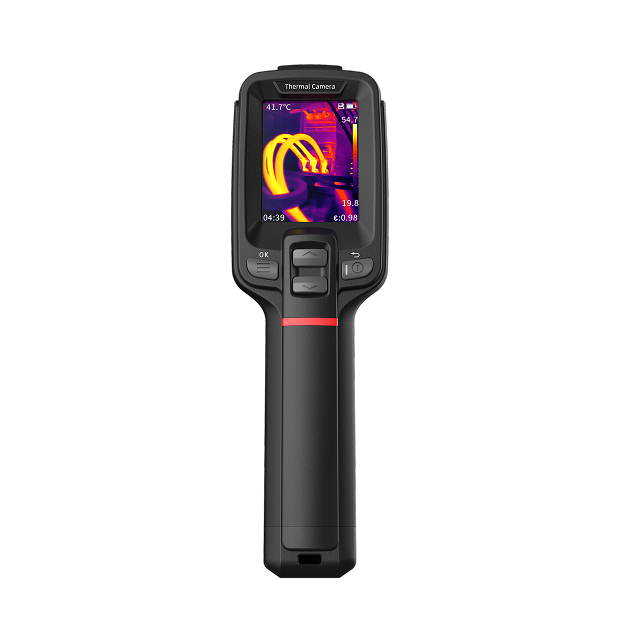

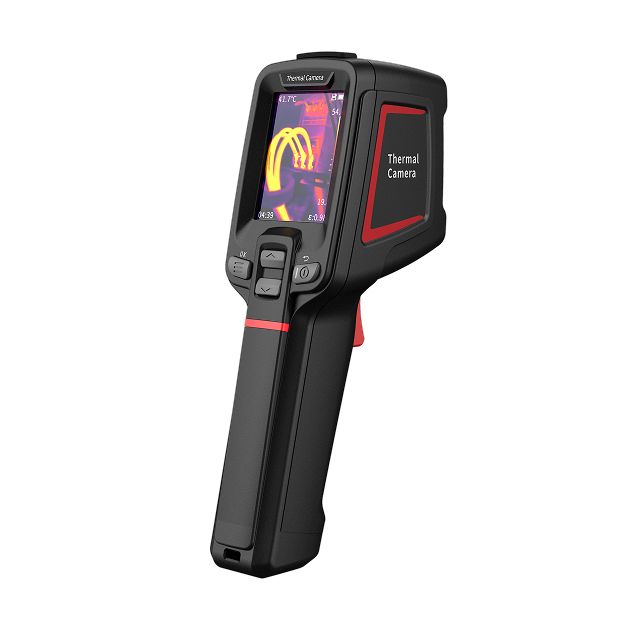

Tool-like Thermal camera

EasIR Series tool-like thermal camera with Infrared resolution 120x90. It adopts the new real-time IR-Perfclear technology to enhance the details and reduce noise of the image and present a clearer image in real time. Equipped with a series of professional functions such as 2MP visible light camera, more powerful and smoother work experience for users.

IR Resolution

120×90@17μm
NETD

60mK
Measurement range

-20°C~550°C
Frame rate

25Hz/9Hz

Product Brochure

Product Features

256x192/120x90@12μm infrared detector

Based on the self-developed 12μm uncooled infrared detector, EasIR Series provides two configurations of 256×192 and 120×90 infrared resolution, which features a lower consumption with a smaller size.

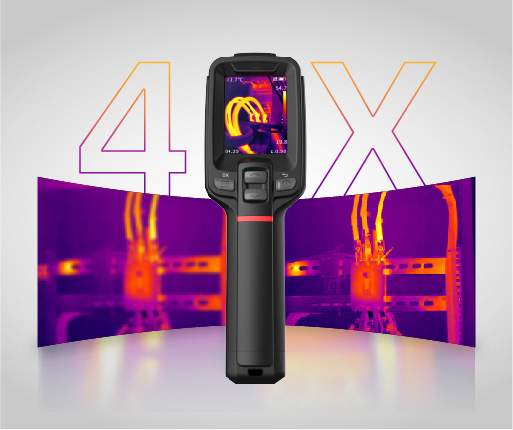

Real-time IR-Perfclear technology

The real-time IR-Perfclear technology breaks through the size limitations of infrared detector, it achieves a 4x enhancement in image quality through real-time computational optimization. This delivers higher quality images with richer details and crystal-clear clarity.
Wide measurement range, automatic switching

With a wide measurement range from -20℃ to 550℃ (-20℃-150℃ / 0℃-550℃) and automatic switching, EasIR Series can meet the diverse demands of more industries with more accurate temperature measurement.

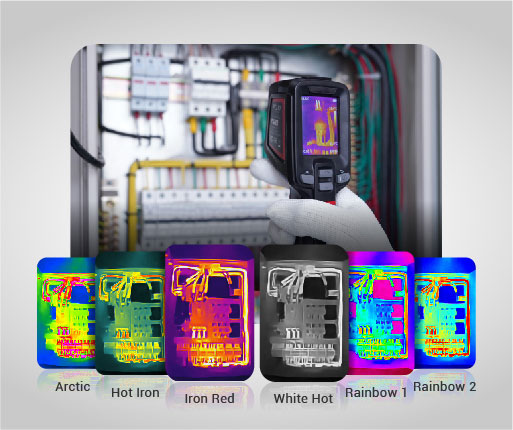

Infrared & visible light enriches the image display

Equipped with a thermal imaging sensor and visible light camera, EasIR Series provides 4 image modes and 6 color palettes, helping users to observe and analyze the heat distribution of targets more intuitively.

Solutions

Industrial Thermography

Media Gallery

Electrical Cabinet

PIP

Engine

Underfloor Heating

Distribution Cabinet

Technical Parameters

Model

添加对比

Imaging and optics
Detector type	VOx, 7.5 to 14μm
Infrared resolution	120×90@17μm
Super resolution	Yes, Upgrade to 240×180
NETD	60mK
Frame rate	25Hz/9Hz
Focal length	2.28mm
Field of view	50°×38°
IFOV	7.46mrad
Min. object distance	0.1m
D:S	130:1
Focusing mode	Focus-free

Measurement and analysis
Measurement range	Support auto-switching: -20°C to 150°C, 0°C to 550°C
Measurement accuracy	±2°C or ±2%, whichever is greater
Analyzed target	Center spot; Three Fixed Areas: Small, Medium, Large (Alternative)
Alarm	Full screen temperature threshold alarm (image and flash)

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
