E2

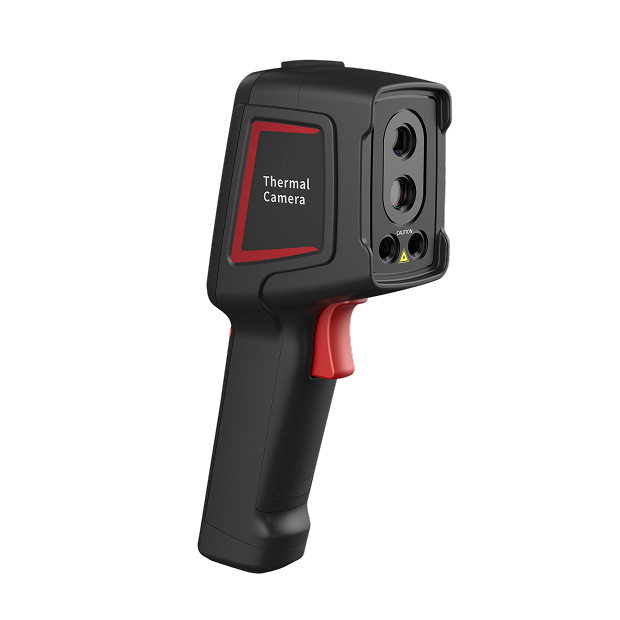

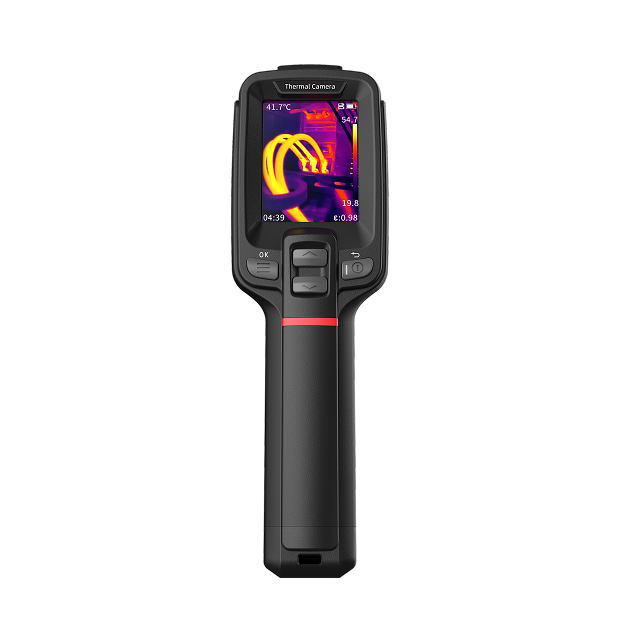

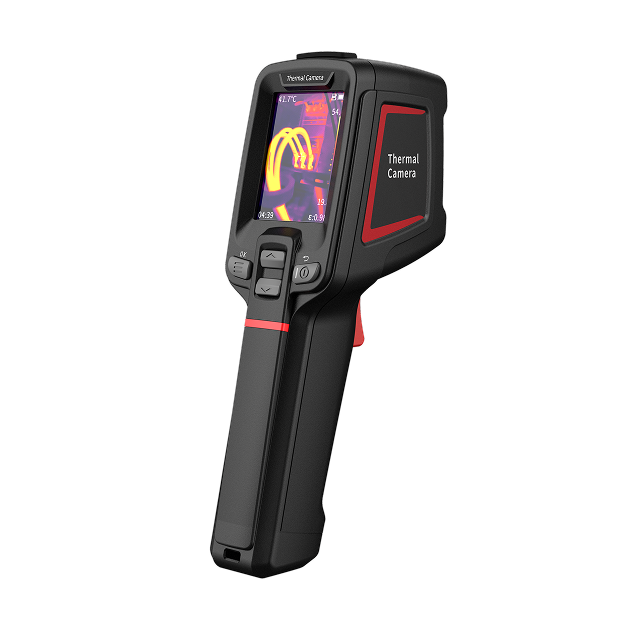

Tool-like Thermal camera

EasIR Series tool-like thermal camera provides two configuration options of 120x90 and 256x192 IR detectors. It adopts the new real-time IR-Perfclear technology to enhance the details and reduce noise of the image and present a clearer image in real time. Equipped with a series of professional functions such as 2MP visible light camera, video streaming and recording, WIFI, and OTA upgrade, etc., EasIR Series brings a clearer, more powerful and smoother work experience for users.

IR Resolution

256×192@12μm
NETD

45mK
Measurement range

-20°C~550°C
Frame rate

25Hz/9Hz

Product Brochure

Product Features

256x192/120x90@12μm infrared detector

Based on the self-developed 12μm uncooled infrared detector, EasIR Series provides two configurations of 256×192 and 120×90 infrared resolution, which features a lower consumption with a smaller size.

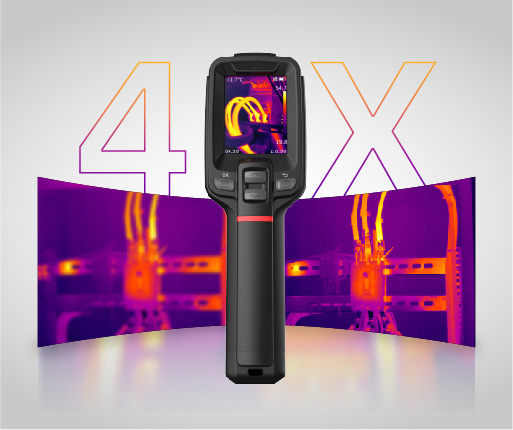

Real-time IR-Perfclear technology

The real-time IR-Perfclear technology breaks through the size limitations of infrared detector, it achieves a 4x enhancement in image quality through real-time computational optimization. This delivers higher quality images with richer details and crystal-clear clarity.
Wide measurement range, automatic switching

With a wide measurement range from -20℃ to 550℃ (-20℃-150℃ / 0℃-550℃) and automatic switching, EasIR Series can meet the diverse demands of more industries with more accurate temperature measurement.

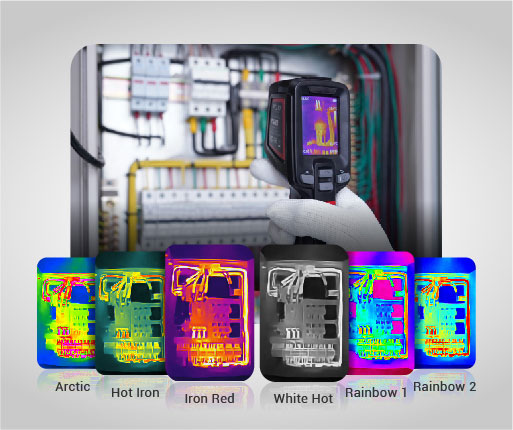

Infrared & visible light enriches the image display

Equipped with a thermal imaging sensor and visible light camera, EasIR Series provides 4 image modes and 6 color palettes, helping users to observe and analyze the heat distribution of targets more intuitively.

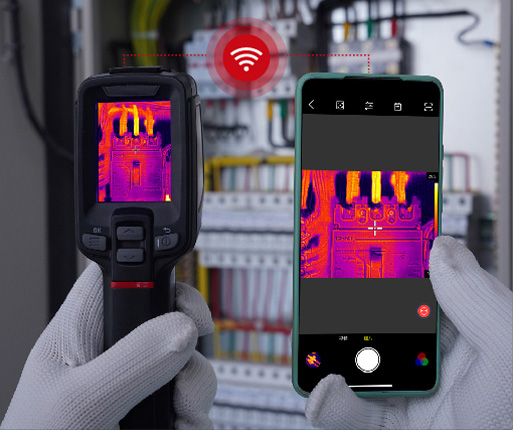

Convenient Sharing Via Mobile APP Connection

By connecting the Wi-Fi, users can remotely access to phone album and share conveniently via the mobile APP. Additionally, EasIR Series can be controlled in real-time via the mobile APP for taking photos and recording videos. Note: *E1 does not support this function.
Video streaming

Through Wi-Fi connection, data can be transmitted to PC analysis software instantly, providing users with recording and real-time analysis capabilities.

Solutions

Industrial Thermography

Media Gallery

Electrical Cabinet

PIP

Engine

Underfloor Heating

Distribution Cabinet

Technical Parameters

Model

添加对比

Imaging and optics
Detector type	VOx, 7.5 to 14μm
Infrared resolution	256×192@12μm
Super resolution	Yes, Upgrade to 512×384
NETD	45mK
Frame rate	25Hz/9Hz
Focal length	3.2mm
Field of view	56°×48°
IFOV	3.75mrad
Min. object distance	0.1m
D:S	266:1
Focusing mode	Focus-free

Measurement and analysis
Measurement range	Support auto-switching: -20°C to 150°C, 0°C to 550°C
Measurement accuracy	±2°C or ±2%, whichever is greater
Analyzed target	Center spot; Three Fixed Areas: Small, Medium, Large (Alternative)
Alarm	Full screen temperature threshold alarm (image and flash)

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
