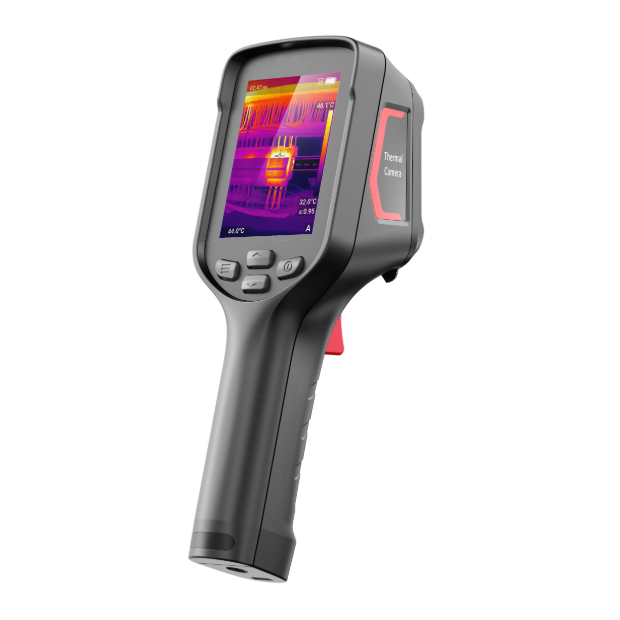

  • 1-622.png

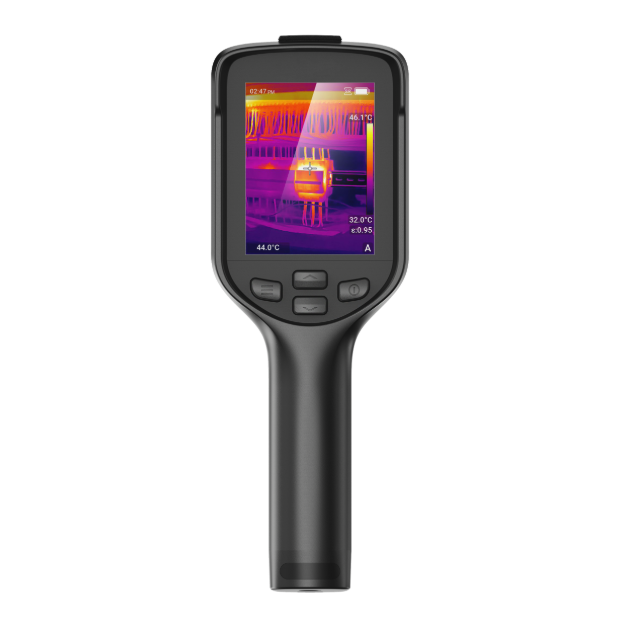

  • 2.png

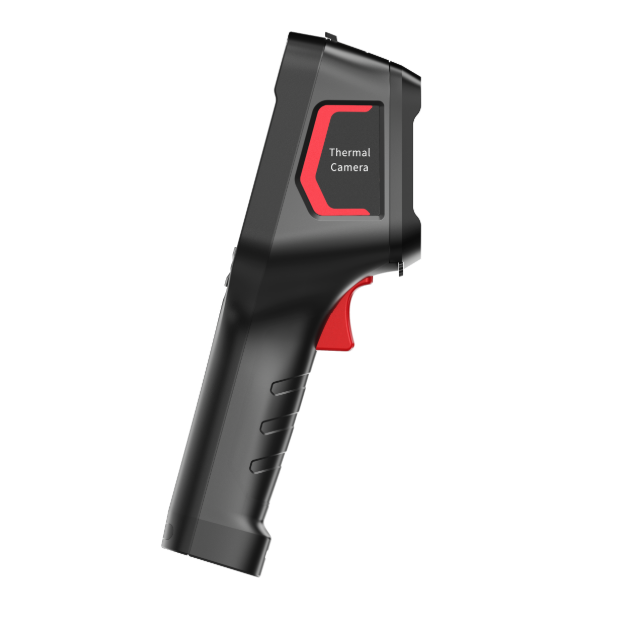

  • 3.png

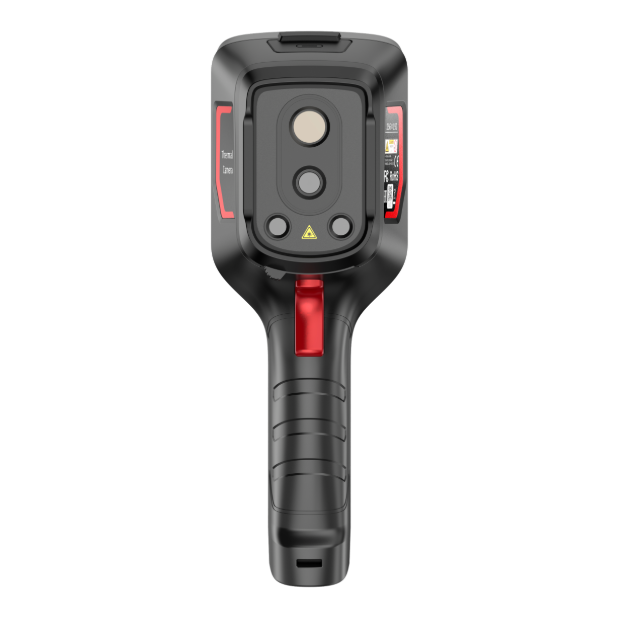

  • 4.png

E3

Tool-like Thermal camera

EasIR Series offers high-resolution detectors (256×192 or 384×288) for precise capture of minute temperature variations. Featuring IR-Perfclear technology, it optimizes image details and reduces noise in real time, delivering exceptionally clear thermal imaging. The device is equipped with a 3.5-inch bright HD display and a 2 MP visible-light camera, supporting both synchronous display or image fusion of thermal and visible-light. Enhanced with smart capabilities including live video streaming, recording, Wi-Fi connectivity, and OTA upgrades, it significantly boosts work efficiency.

  • IR Resolution
    256×192@12μm
  • NETD
    30mK
  • Measurement range
    -20°C~550°C
  • Frame rate
    30Hz/9Hz
  • 1-622.png
  • 2.png
  • 3.png
  • 4.png

Product Features

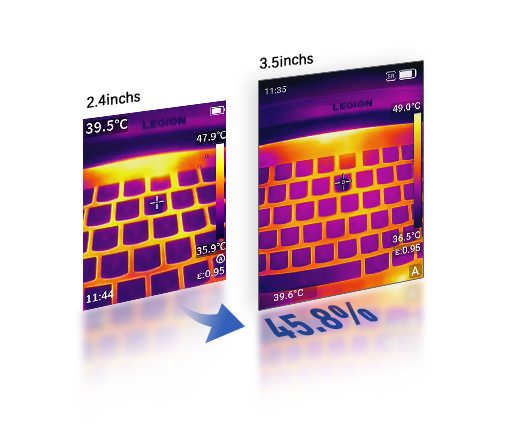

  • 3.5-inch Large Display

    Upgraded 3.5-inch screen for effortless detail observation and a more intuitive viewing experience.

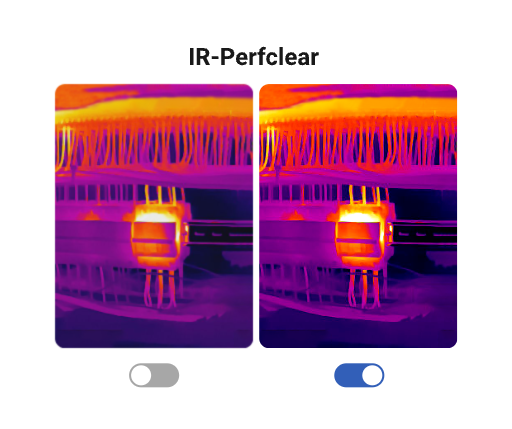

  • Real-time IR-Perfclear Technology

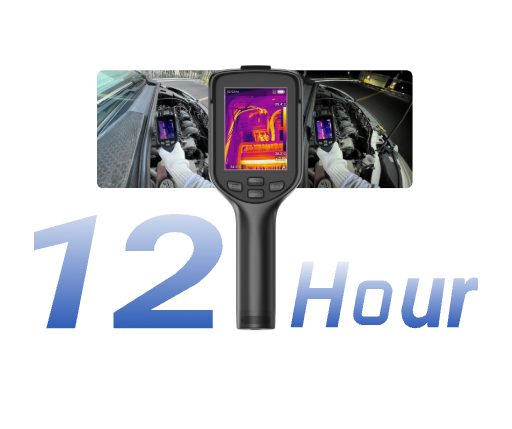

  • Extended Battery Life

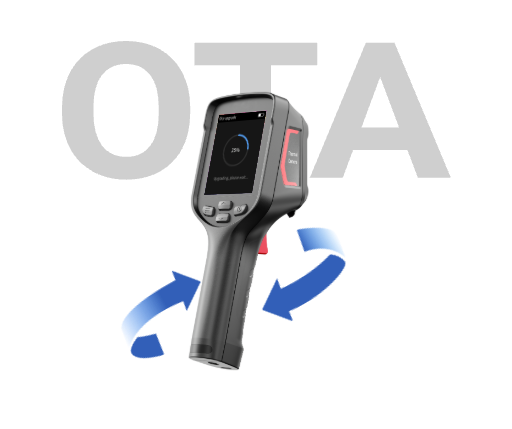

  • OTA Upgrade

  • 3.5yingcun-yingwen-478.png

Media Gallery

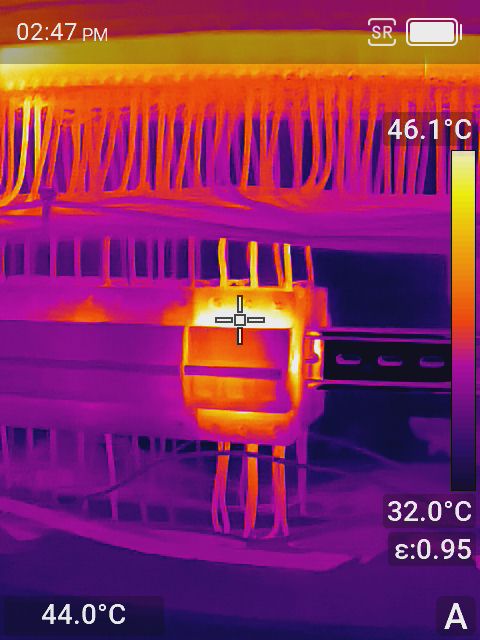

Electrical

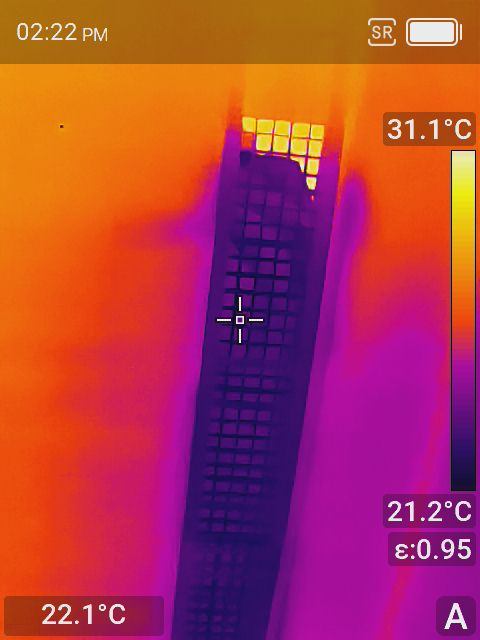

Air-conditioning

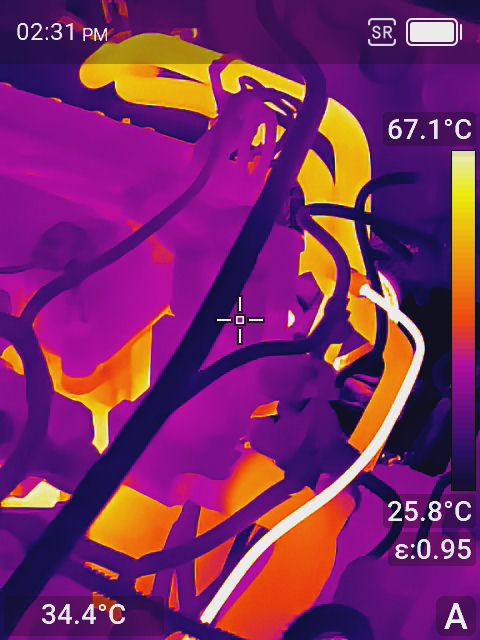

Auto Repair

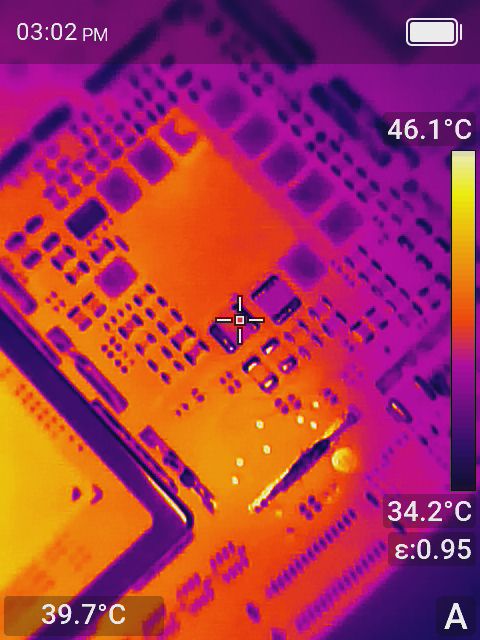

PCB

Technical Parameters

Model

E3

添加对比

Imaging and optics
Detector type VOx, 7.5 to 14μm
Infrared resolution 256×192@12μm
Super resolution Yes, Upgrade to 512×384
NETD 30mK
Frame rate 30Hz/9Hz
Focal length 3.2mm
Field of view 56°×42°
IFOV 3.75mrad
Min. object distance 0.3m
D:S 266:1
Focusing mode Focus-free
Measurement and analysis
Measurement range Support auto-switching: -20°C to 150°C, 0°C to 550°C
Measurement accuracy ±2°C or ±2%, whichever is greater
Analyzed target Center spot; Three Fixed Areas: Small, Medium, Large (Alternative)
Alarm Full screen temperature threshold alarm (image and flash)

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
