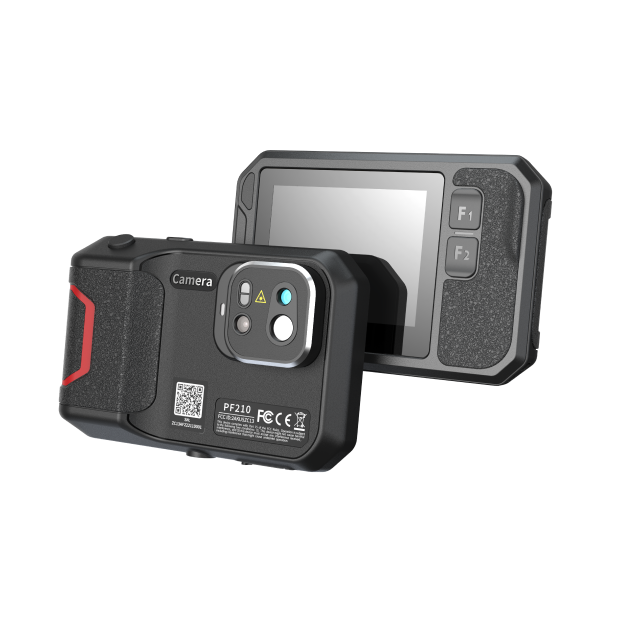

PF210

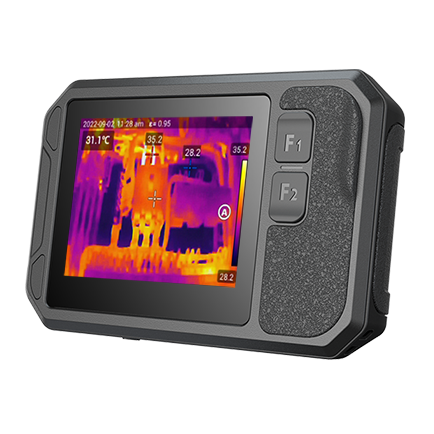

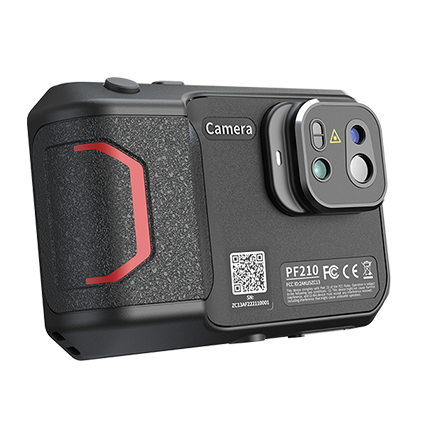

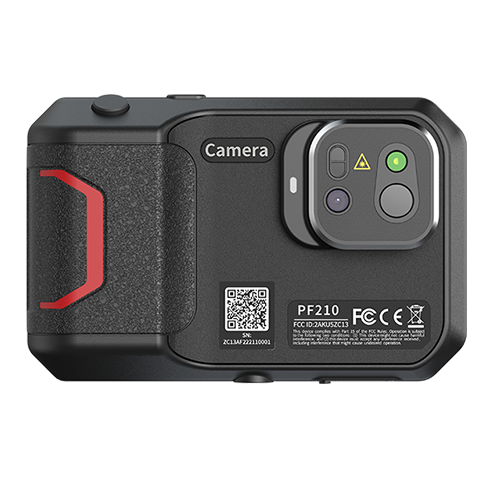

Pocket-sized Thermal Camera

The PF Series pocket-sized thermal camera is a non-contact inspection tool for diagnosing problems and finding hidden deficiencies of electrical equipment, thanks to its 256 × 192 pixel infrared detector, -20°C to 550°C temperature range, 5 MP visible light camera and 3.5-inch LCD touchscreen. The extraordinary thermal imaging detail, easy operation and built-in Wi-Fi allow users to quickly and easily share the professional reports that document the problem.

IR resolution

256x192
Measurement Range

-20℃ to 550℃
Field of view

56° × 48°
Minimum object distance

0.3 m

Product Brochure

Product Features

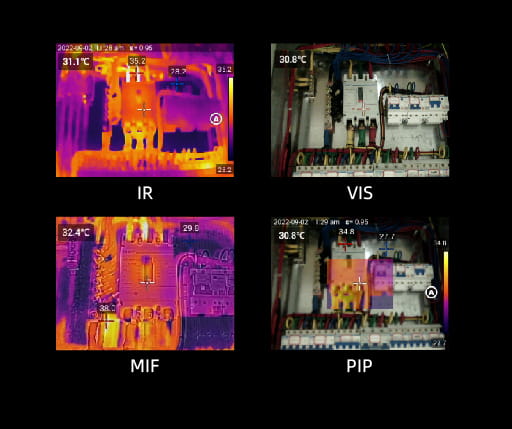

Outstanding thermal imagery

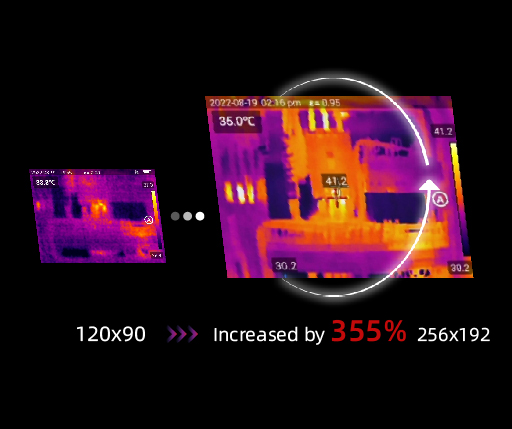

The self-developed WLP infrared module with 256x192 resolution and the new noise reduction algorithm ensure the PF Series produces the more crisp, easier-to-identify images.
Real-time temperature information

Get accurate maximum, minimum and center-point temperature readings on a full screen in four modes.
Easy and fast search

Enter a keyword, find the function setting without difficulty and perform the function you need quickly.

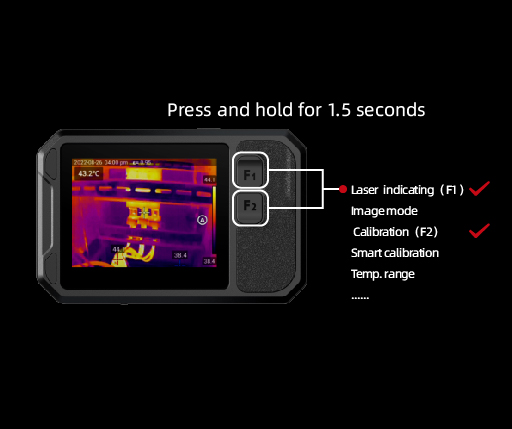

Customized function buttons

Two physical buttons keep you free from looking for the most commonly used functions so that a one-button transfer into the desired function can be realized.
Take and view

When images are captured, taping the thumbnails on the upper right corner helps you view the images again and find a hidden deficiency facilely.

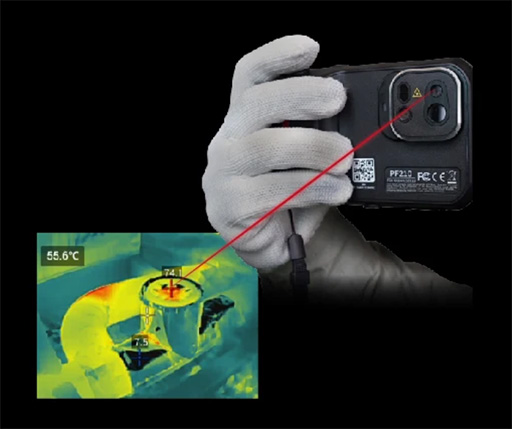

Built-in lasers for fast temperature tracking

Laser indicator
Provide precise location and accurate temperature measurement of targets.
Laser rangefinder
Accurate range-to-target and intelligent area calculation of a rectangle object.

Solutions

Industrial Thermography

Media Gallery

Technical Parameters

Model

PF210

添加对比

Imaging and optics
Detector type	VOx, 7.5 to 14μm
Infrared resolution	256×192@12μm
NETD	45mK
Frame rate	25Hz/9Hz
Focal length	3.2mm
Field of view	56°×48°
IFOV	3.75mrad
Min. object distance	0.3m
D:S	266:1
Focusing mode	Focus-free
Digital zoom	1.1x to 8x

Measurement and analysis
Measurement range	Support auto-switching: -20°C to 150°C, 100°C to 550°C
Measurement accuracy	±2°C or ±2%, whichever is greater
Analyzed target	Spot×2 ( Include Center spot), Area×3
Alarm	Full screen temperature threshold alarm (image and flash)
Others	Intelligently calculate the area

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
