H2

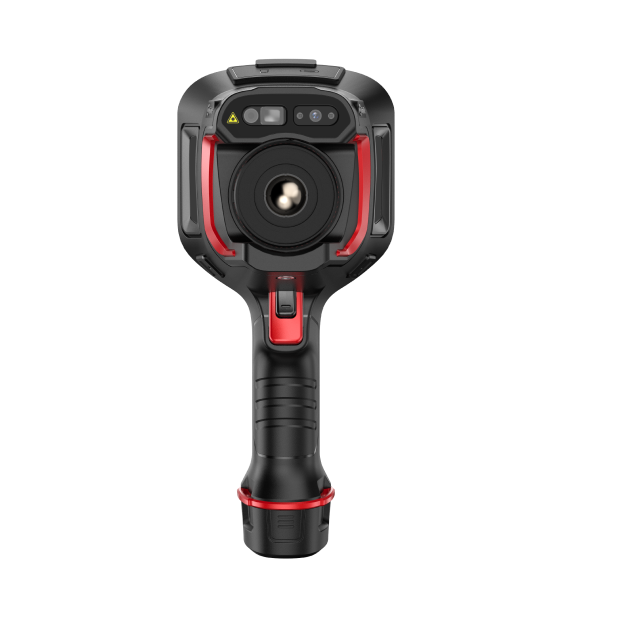

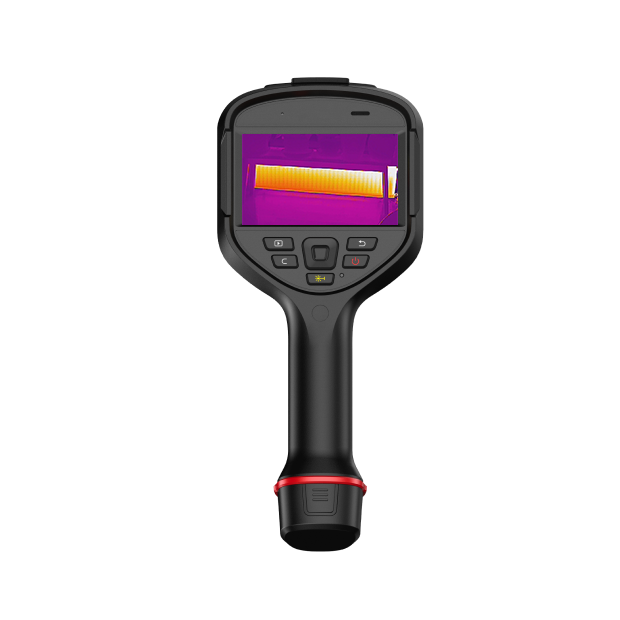

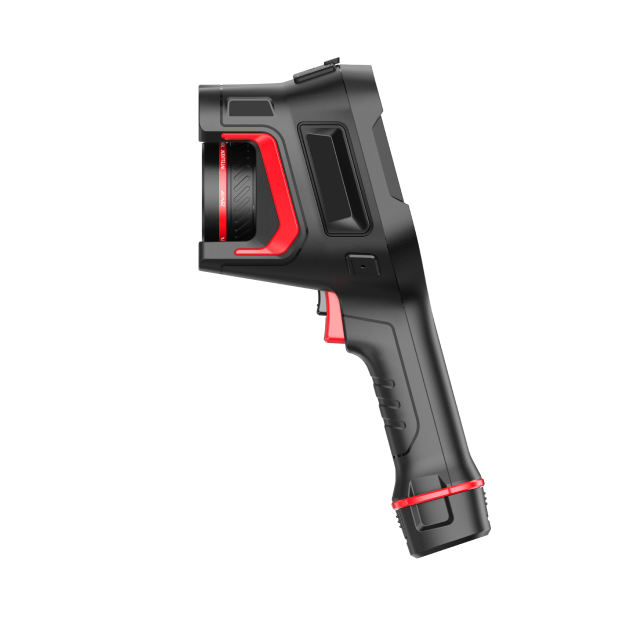

Intelligent Thermal Camera

With a built-in self-developed high-sensitivity IR detector, a 5MP visible light camera, and 5 focusing modes, Hammer Series, the high-precision thermal camera designed specifically for the industrial field helps users intuitively view high-definition images and temperature details of the target, with the classic "hammer" shape. 30Hz infrared frame rate for fast and accurate access to more temperature data of moving targets, far beyond the same level of products.

  • IR Resolution
    256×192
  • Visible Light
    5MP
  • Frame Rate
    30Hz
  • Upgrade
    OTA
  • 157-81.png
  • D2-1_img42.png
  • D2-1_img44.png
  • D2-1_img45.png

Product Features

  • High-sensitivity IR Detector

    A new generation of self-developed infrared focal plane detectors with a resolution of 256x192 coupled with super-resolution reconstruction for high-quality imaging.

  • 30Hz IRGD Frame Rate

  • Wide-range Measurement with Rich Application Scenarios

  • Real-time Presentation of Intuitive Temperature Data

  • OTA Upgrade for the Latest System Version

  • 最高640x480红外分辨率

Media Gallery

IR-1

IR-2

IR-3

IR-4

Technical Parameters

Model

H2

添加对比

Imaging and optics
Detector type VOx, 7.5 to 14μm
Infrared resolution 256×192@12μm
Super resolution Yes, Upgrade to 512×384
NETD 30mK
Frame rate 50Hz/9Hz
Focal length 6.8mm
Field of view 25°×19°
IFOV 1.70mrad
Min. object distance 0.15m
D:S 588:1
Focusing mode Image Autofocus / Laser Autofocus / Continuous Autofocus / Manual Focus / Touch-to-Focus
Digital zoom 1x to 8x
Measurement and analysis
Measurement range Support auto-switching: -40°C to 150°C, 0°C to 650°C, 500°C to 2000°C (Need option ultra-wide measurement range lens kit)
Measurement accuracy ±2°C or ±2%, whichever is greater
Analyzed target 5 in total (Spot/Line/Area)
Alarm Full screen temperature threshold alarm (image, voice and flash)
Others Isothermals, Smart Stroke, Intelligently calculate the area

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
