H3

Intelligent Thermal Camera

H Series Enhanced -- High-Precision Hammer-Style Infrared Camera is specifically designed for industrial inspections and electrical grid maintenance. Equipped with a proprietary self-developed high-sensitivity detector (NETD <30mK, 640×480 resolution), its 50Hz high frame rate and wide temperature measurement range ensure precise capture of abnormal heating points. Equipped with a single-lens dual-FOV design, it instantly switches between wide-angle and narrow-angle views without lens changes. This enables seamless adaptation to complex scenarios, efficiently handling both long-distance inspections and close-range temperature measurements.

IR Resolution

320x240
FOV

25°+15°、25°+45°
Frame Rate

50Hz
Measurement Range

-40℃~2000℃

Product Brochure

Product Features

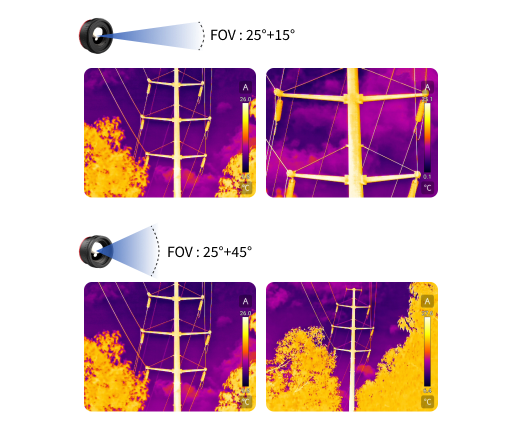

TwinView DFoV Lens

Switch seamlessly between long-range scanning and close-range temperature measurement without lens changes-efficiently tackling diverse scenarioswith unmatched versatility.

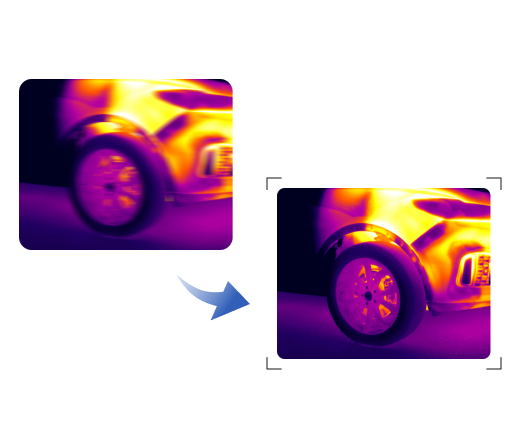

50Hz High Frame Rate

50Hz frame rate captures thermal dynamics instantly，ensuring zero missed detections in industrial inspections.

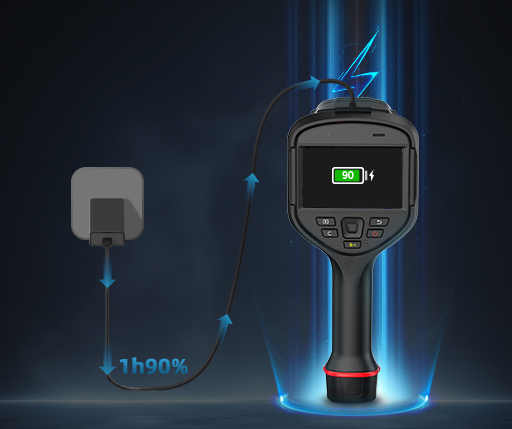

90% Charge in 1 Hour

Charge to 90% in 1 hour, minimizing downtime for critical missions.

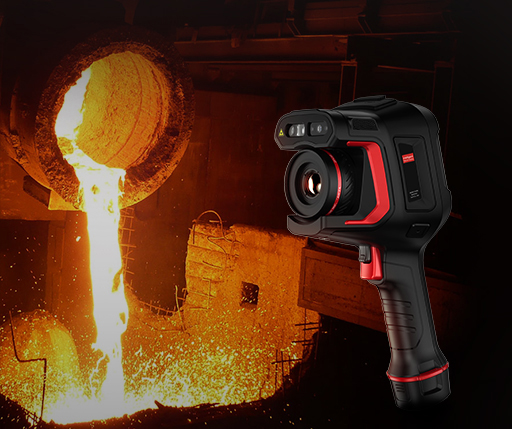

2000℃ Ultra-High Temp

Covers -40℃ to 2000℃, delivering accuracy from freezing cold to molten furnaces, ensuring error-free measurements in environments like kilns and reactors.

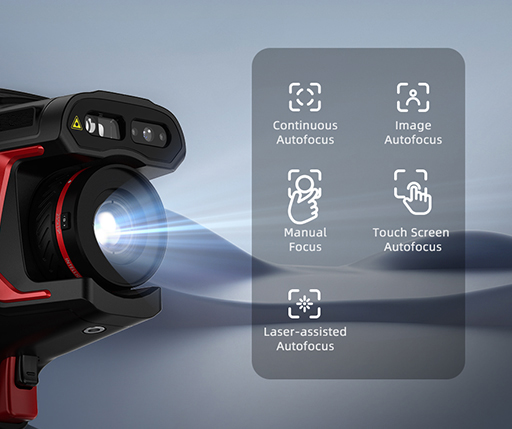

5 Focus Modes

5 focus modes and rapid focus system boost success rates by 90% in complex scenarios.

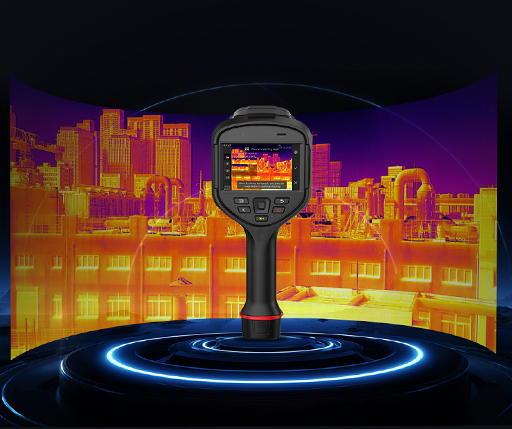

PerIRVision Panoramic Stitching

AI-powered stitching improves large-area thermal scanning efficiency by 80% for substations, buildings, and more.

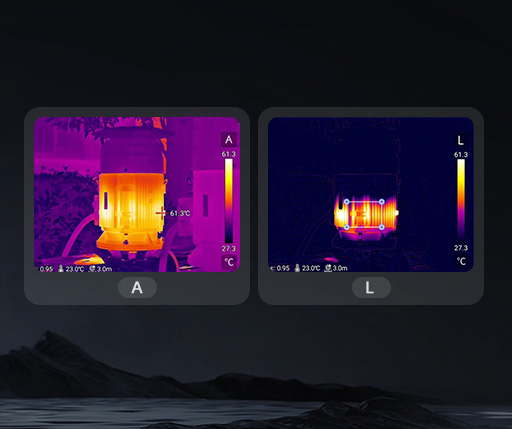

Local Dimming

Features 4 LevelSpan modes (A, M, S, L), where mode L enables real-time target framing. Touch to move the region, dynamically enhancing contrast in focused areas while highlighting potential anomalies.

Solutions

Energy Inspection

Industrial Thermography

Media Gallery

Technical Parameters

Model

添加对比

Imaging and optics
Detector type	VOx, 7.5 to 14μm
Infrared resolution	320×240@12μm
Super resolution	Yes, Upgrade to 640×480
NETD	30mK
Frame rate	50Hz/9Hz
Focal length	8.5mm
Field of view	25°×19°
IFOV	1.36mrad
Min. object distance	0.15m
D:S	735:1
Focusing mode	Manual / Automatic / Touch autofocus / Continuous autofocus
Digital zoom	1.1x to 8x

Measurement and analysis
Measurement range	Support auto-switching: -40°C to 150°C, 0°C to 650°C, 500°C to 2000°C (RangeMax Ultra-wide measurement range lens kit)
Measurement accuracy	±2°C or ±2%, whichever is greater
Analyzed target	8 in total (Spot/Line/Area)
Alarm	Full screen temperature threshold alarm (image, voice, color and flash)
Others	Isothermals, Smart Stroke, Intelligently calculate the area, Color Highlighting

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
