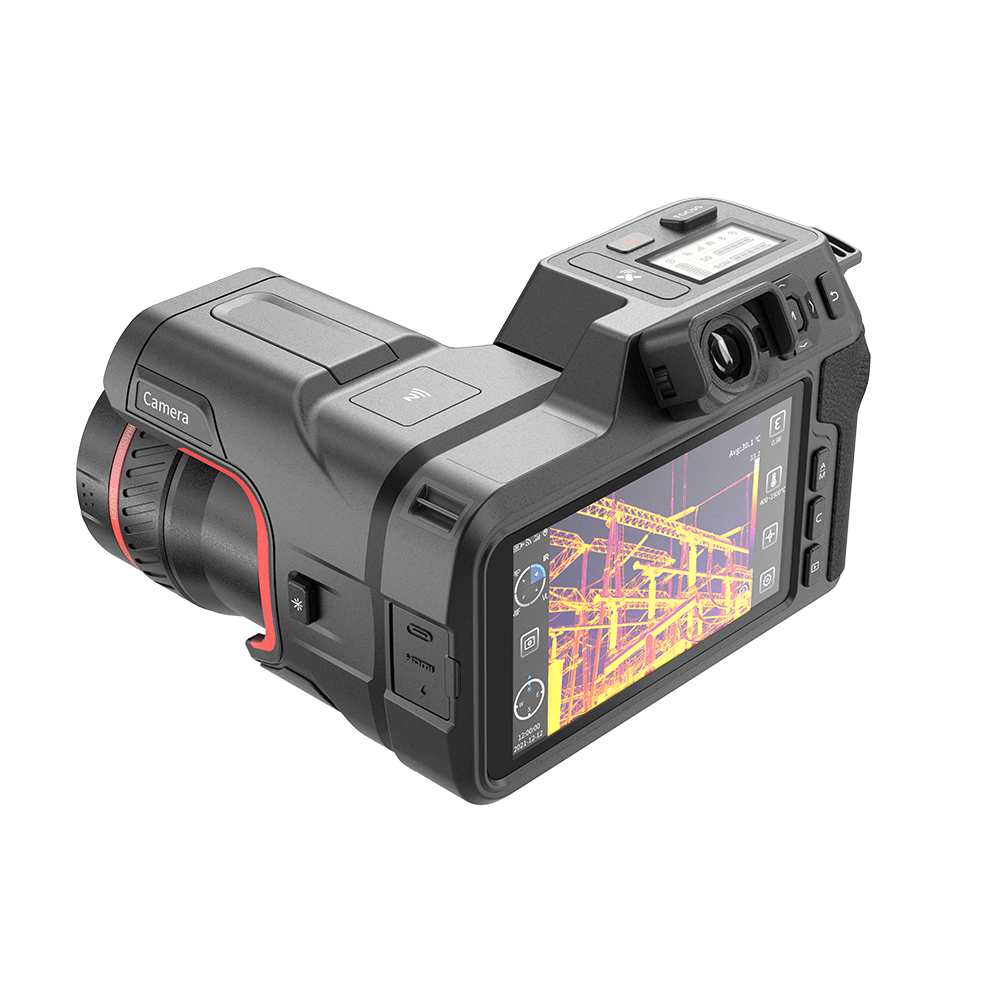

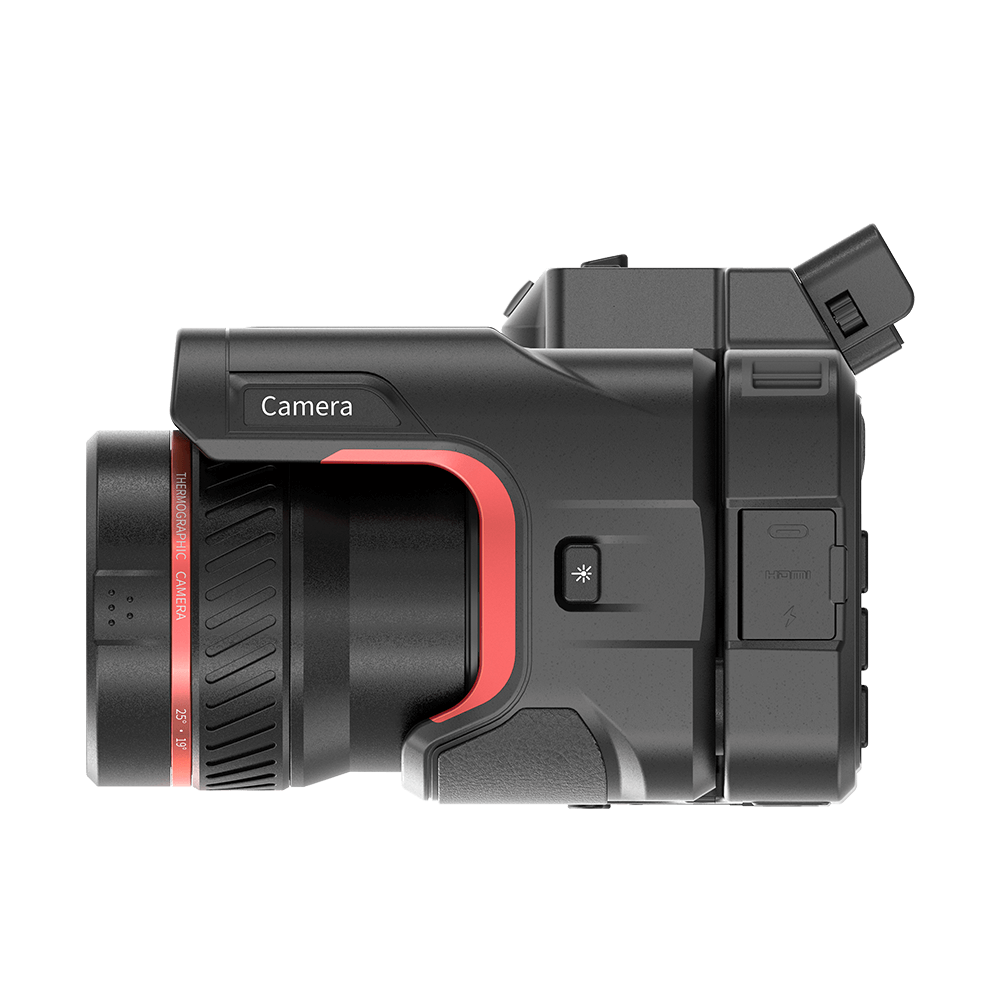

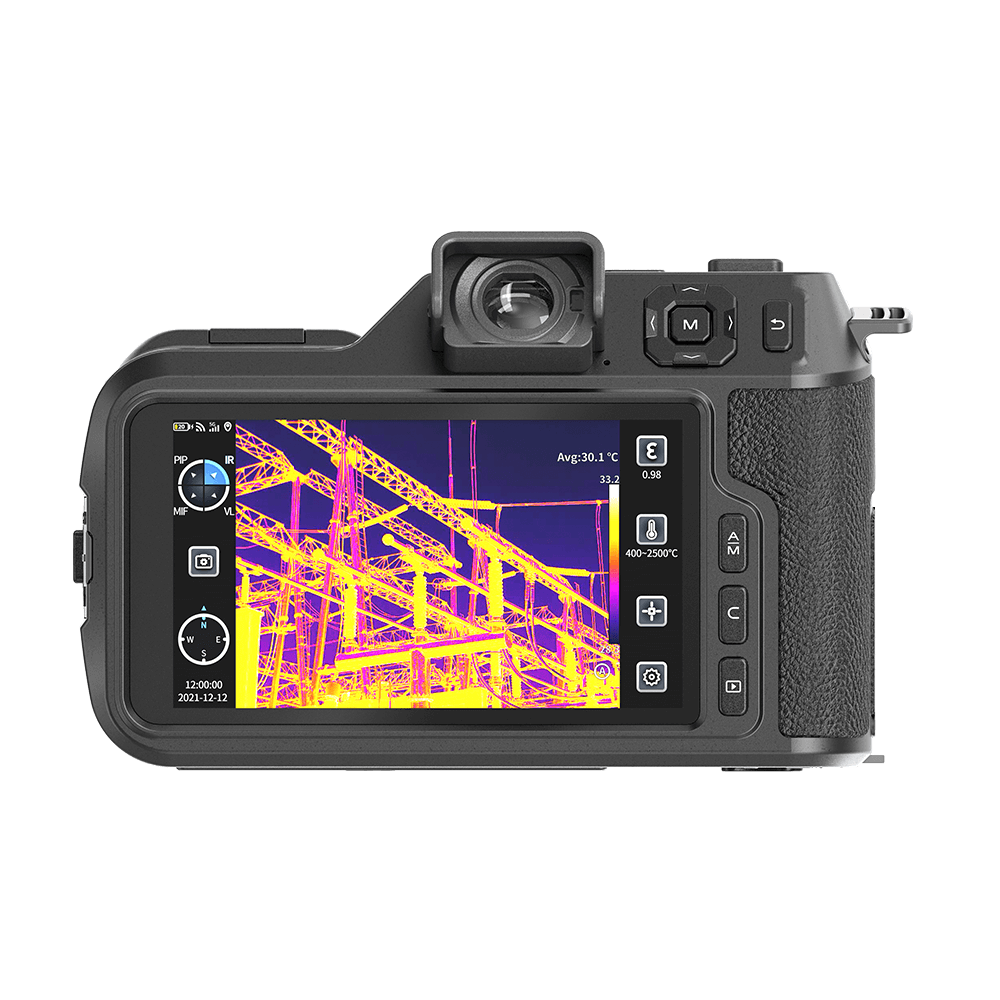

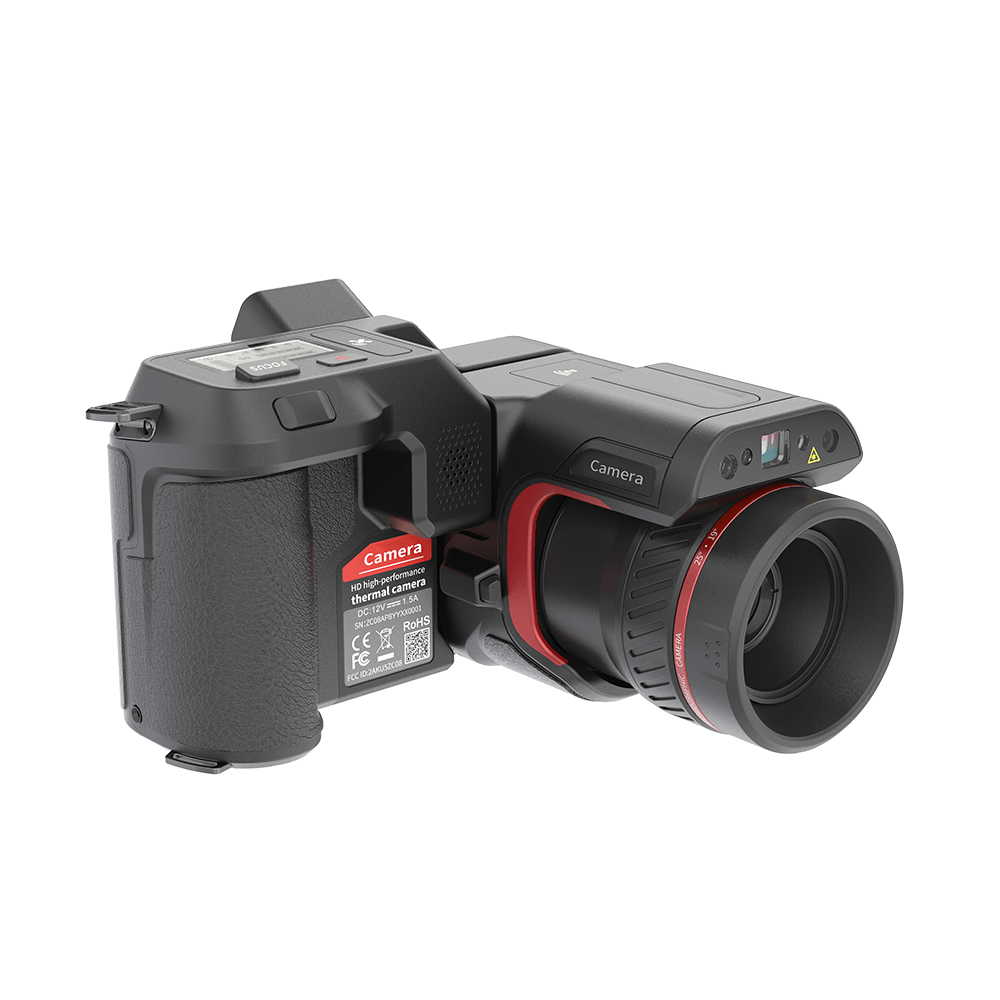

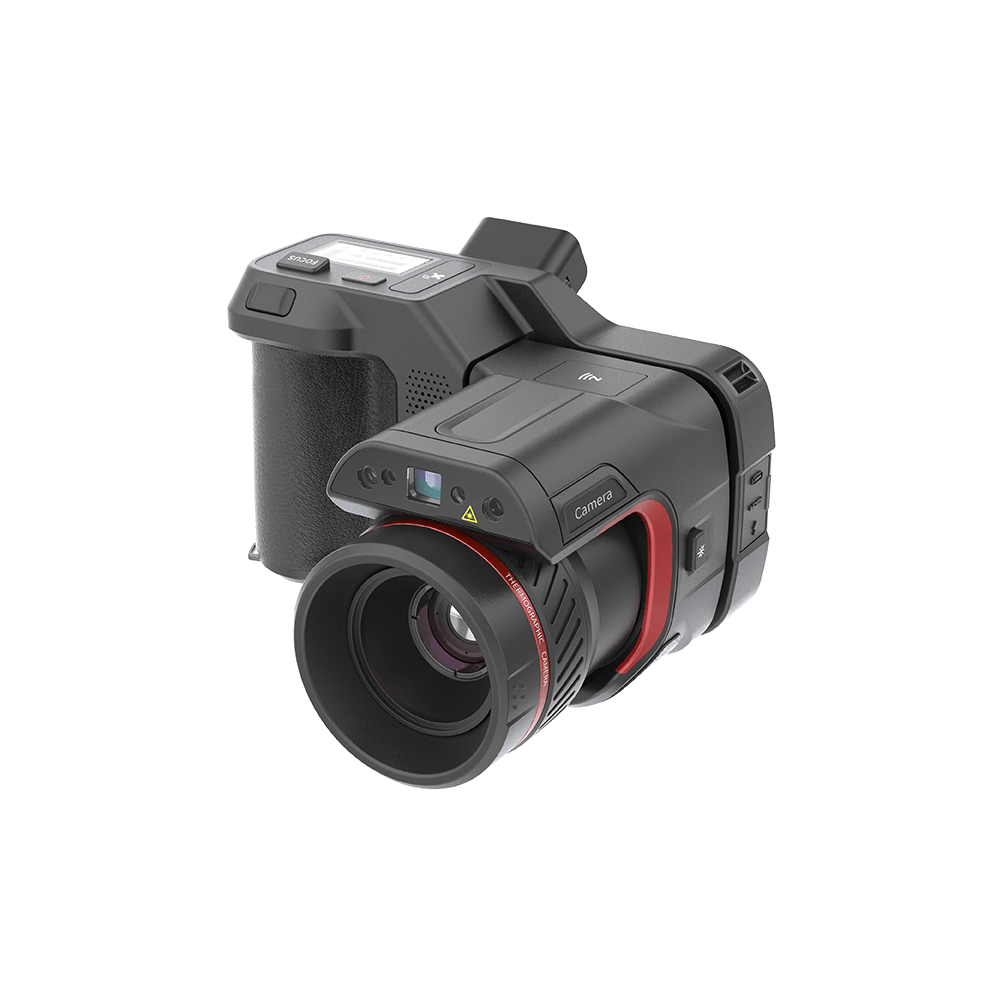

PT850
HD High-Performance Thermal Camera
PT Series is the world’s first portable thermal camera with MP-level Infrared Resolution. Equipped with the self-developed 1280×1024 IR detector, this camera has the A/M-Focus manual and auto focusing system to provide much more crisp images. Advanced hardware, software and exceptional experience ensure it is the flagship in this industry.
-
IR resolution1024×768
-
One-touch transmissionNFC
-
updateOTA
-
Communications5G
Product Features
-

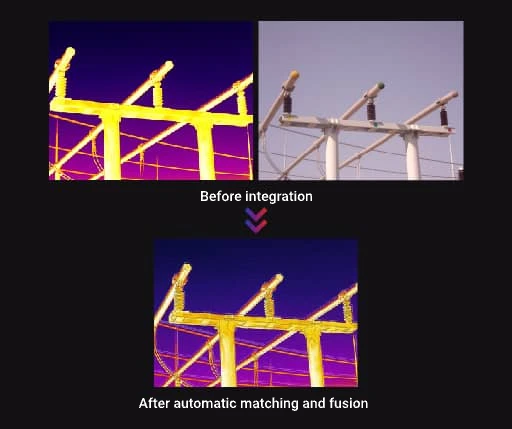

MIFusion+ Multi-spectral Image Fusion Technology
Guide MIFusion+ adds visible light details to thermal images in real time for greater clarity and observing efficiency.
-
IR-Perfclear Super-resolution Reconstruction Technology
-

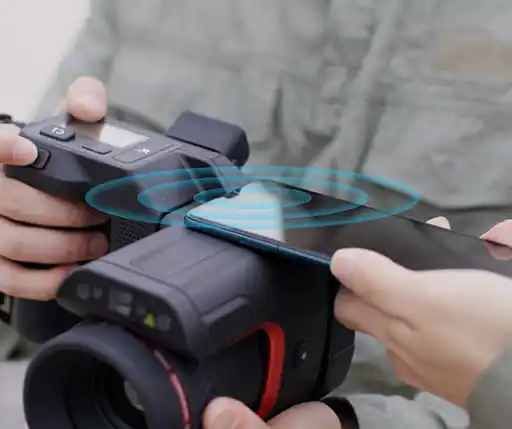

NFC transmission, Faster than you may imagine
-

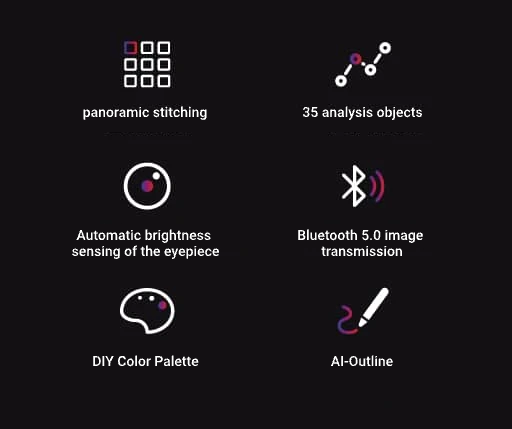

Ultimate configuration and features, Having everything users expect
.jpg)
NFC-356_jpg-185.jpg)
-368.png)
Solutions
Media Gallery
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical Parameters
Model
PT850
添加对比
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14μm | |||
| Infrared resolution | 1024×768@12μm | |||
| Super resolution | Yes, Upgrade to 2048×1536 | |||
| NETD | 25mK | |||
| Frame rate | 50Hz/9Hz | |||
| Focal length | 27.7mm | |||
| Field of view | 25°×19° | |||
| IFOV | 0.43mrad | |||
| Min. object distance | 0.3m | |||
| D:S | 2346:1 | |||
| Focusing mode | Manual / Automatic / Touch autofocus / Continuous autofocus | |||
| Digital zoom | 1.1x to 50x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -40°C to 150°C, 0°C to 800°C, Optional 400°C to 2500°C (High temperature lens is required) | |||
| Measurement accuracy | ±1°C or ±1%, whichever is greater | |||
| Analyzed target | 35 in total (Spot/Line/Area) | |||
| Alarm | Full screen temperature threshold alarm (image, voice and flash) | |||
| Others | Isothermals, Smart Stroke, Intelligently calculate the area | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
