PT870

HD High-Performance Thermal Camera

PT II series Flagship Edition Megapixel Thermal Imager incorporates a new generation of self-developed uncooled infrared focal plane detector, achieving a resolution of up to 1280×1024. Its exclusive A/M-Focus manual/automatic hybrid focusing system delivers superior image quality and enhanced operational flexibility. The PT Series has undergone comprehensive upgrades in hardware configuration, software systems, and user experience, aiming to establish a new industry benchmark.

IR resolution

1280×1024@12μm
DFOV

1-lens TwinView
in 1 Hour

Charges to 90%
Temperature Range

Up to 2500°C

Product Brochure

Product Features

TwinView DFoV Lens

Switch seamlessly between long-range scanning and close-range temperature measurement without lens changes-efficiently tackling diverse scenarios with unmatched versatility.
50Hz High Frame Rate

50Hz frame rate captures thermal dynamics instantly, ensuring zero missed detections in industrial inspections.

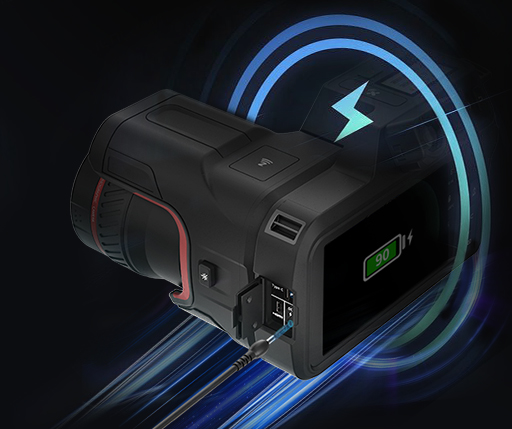

90% Charge in 1 Hour

Charge to 90% in 1 hour, minimizing downtime for critical missions.
2500℃ Ultra-High Temp

Covers -40°℃ to 2500℃, delivering accuracy from freezing cold to molten furnaces, ensuring error-free measurements in environments like kilns and reactors.
5 Focus Modes

5 focus modes and rapid focus system boost success rates by 90% in complex scenarios.

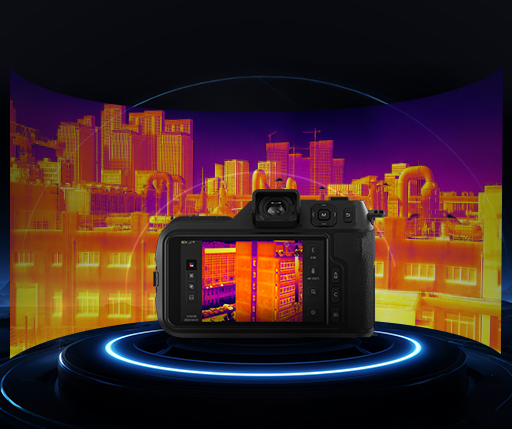

PerIRVision Panoramic Stitching

AI-powered stitching improves large-area thermal scanning efficiency by 80% for substations, buildings, and more.

Solutions

Scientific Research

Industrial Thermography

Solutions

Technical Parameters

Model

PT870

添加对比

Imaging and optics
Detector type	VOx, 7.5 to 14μm
Infrared resolution	1280×1024@12μm
Super resolution	Yes, Upgrade to 2560×2048
NETD	25mK
Frame rate	50Hz/9Hz
Focal length	35mm
Field of view	25°×19°
IFOV	0.34mrad
Min. object distance	0.3m
D:S	2916:1
Focusing mode	Manual / Automatic / Touch autofocus / Continuous autofocus
Digital zoom	1.1x to 50x

Measurement and analysis
Measurement range	Support auto-switching: -40°C to 150°C, 0°C to 800°C, Optional 400°C to 2500°C (High temperature lens is required)
Measurement accuracy	±1°C or ±1%, whichever is greater
Analyzed target	35 in total (Spot/Line/Area)
Alarm	Full screen temperature threshold alarm (image, voice, color and flash)
Others	Isothermals, Smart Stroke, Intelligently calculate the area, Color Highlighting

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
