PR610

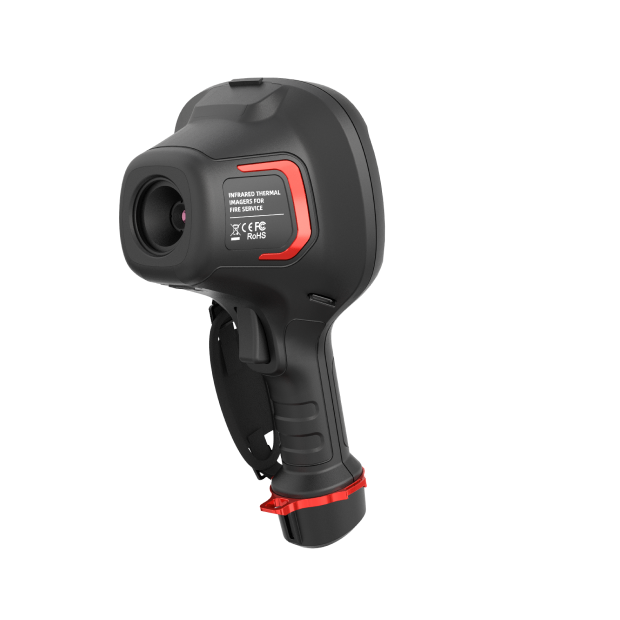

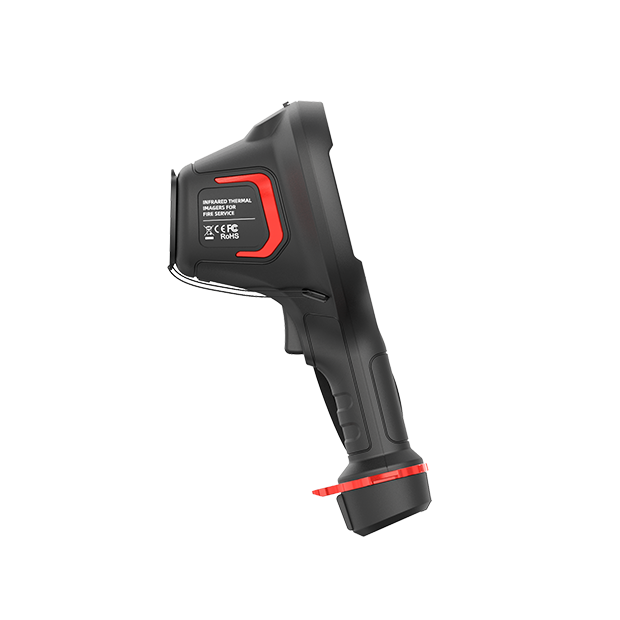

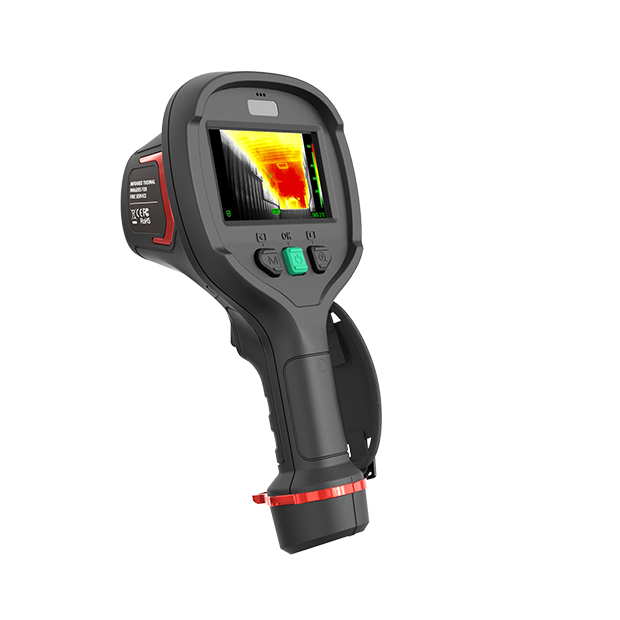

Thermal Camera for Fire Service

PR II series dual-purpose thermal imaging camera for rescue and detection empowers a new perspective for firefighters. The product is certified as Intrinsic Safety Explosion-Proof. It combines high resolution, a large display screen, multiple scene modes, temperature analysis functions, and a strong protection rating, which can break through the limitations of harsh environments such as high temperatures, high humidity, and thick smoke in fire scenes to help firefighters see the surrounding environment quickly and clearly, locate the fire and search for trapped individuals more accurately, providing users with more efficient and safe fire visualization solutions.

Infrared Resolution

640×480@12μm
Ultra-Wide Temp.Range

-40°C~2000°C
IR Frame Rate

60Hz
Detection Range

0.5m~∞

Product Brochure

Product Features

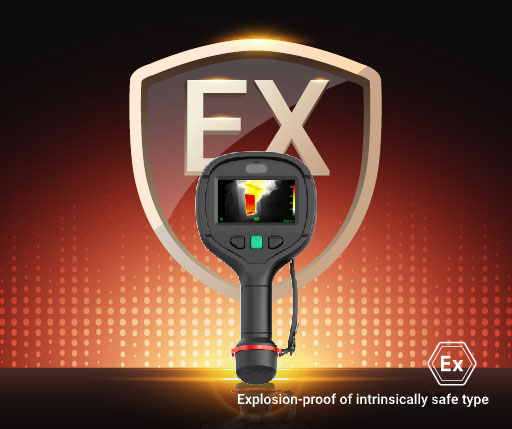

Enhanced Rescue Safety

Certified with whole-unit and battery explosion-proof credentials (intrinsically safe), ensuring operational safety and reliability for firefighters.

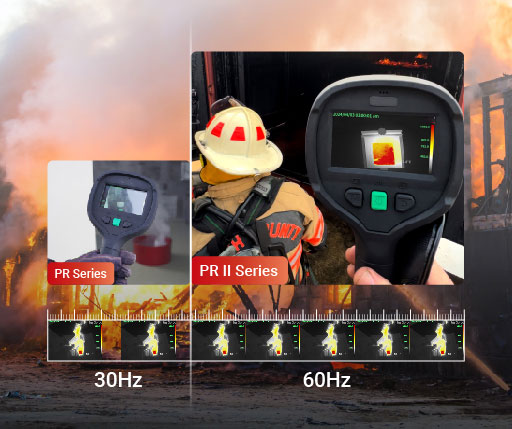

Anti-Glare Display Delivers Clear Imaging

PR II Series features a focus-free design for quick, sharp thermal imaging without manual adjustments. Its 60Hz high frame rate ensures smooth, stable imaging essential for real-time fire scene analysis. The 4.3-inch anti-glare LCD screen allows users to identify targets even in harsh glare or smoke-filled environments, enhancing accuracy.

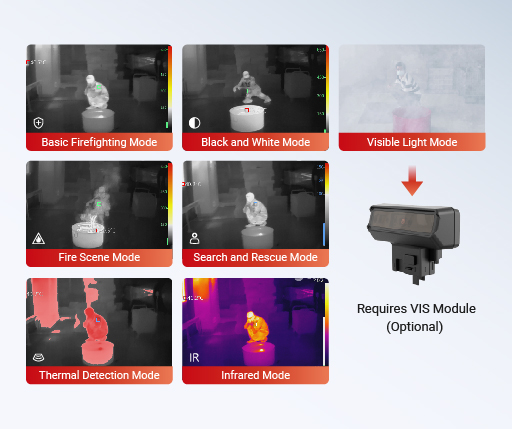

7 Image Modes, Multi-Scenario Firefighting

Engineered to tackle diverse fireground challenges, scene-specific imaging presets enhance situational awareness and support quick, informed decisions for more accurate localization of the fire and persons in danger.
-40°C~2000°C Temperature Range

Accuracy: ±2°C or ±2%, whichever is greater.
Measurement Range: Support auto-switching, -40°C~150°C, 0°C~650°C, 500°C~2000°C (Aperture is required).
Multi-Functional Module Enhances Rescue Efficiency

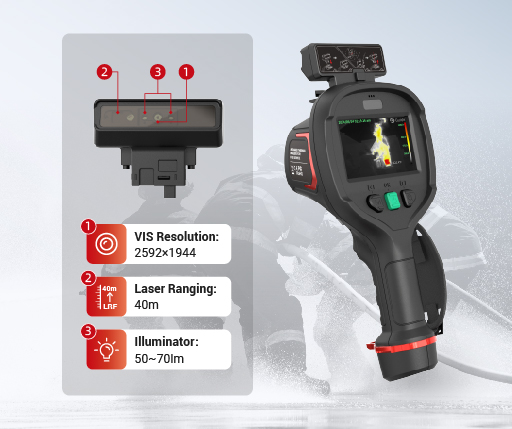

Equipped with a multi-functional VIS module, PR II Series assists in visible-light observation and auxiliary lighting, but also precisely gauge the target distance through laser rangefinder, enhancing operational efficiency in nighttime or low-light scenarios.
Versatile Desktop Charger, Smart Power Management

Multi-function desktop charger…

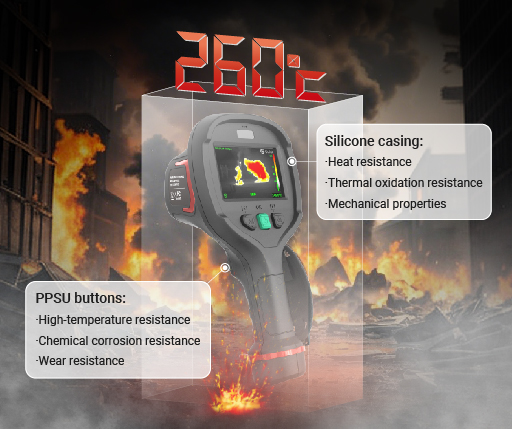

Extreme Thermal Resilience:Full Functionality at 260°C

PR II Series is designed to withstand extreme fireground conditions, such as high temperature, high humidity, dense smoke, and other harsh environmental factors. It can continue to work for up to 5 minutes at 260℃.

Solutions

Fire Rescue

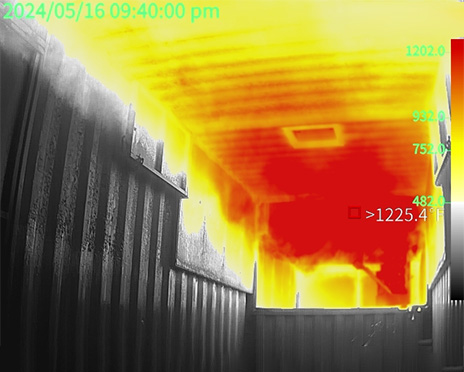

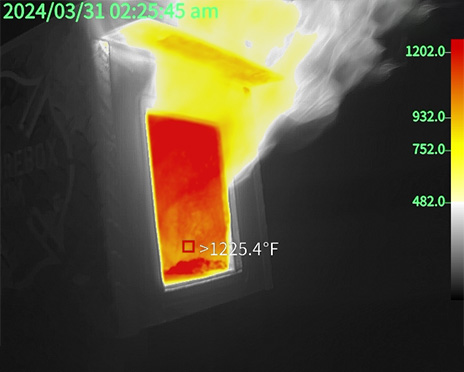

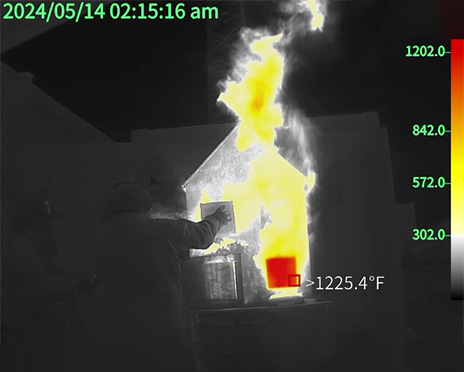

Media Gallery

Technical Parameters

Model

PR610

添加对比

Imaging and optics
Detector type	VOx, 7.5 to 14μm
Infrared resolution	640×480@12μm
NETD	45mK
Frame rate	60Hz/9Hz
Focal length	9mm
Field of view	50°×37°
IFOV	1.25mrad
Min. object distance	0.5m
D:S	800:1
Focusing mode	Focus-free
Digital zoom	2x/4x/8x

Measurement and analysis
Measurement range	Support auto-switching: -40°C to 150°C, 0°C to 650°C, Optional 500°C to 2000°C (Aperture is required)
Measurement accuracy	±2°C or ±2%, whichever is greater
Analyzed target	Three spots: Center, Maximum temperature, Minimum temperature; Three Fixed Areas: Small, Medium, Large (Alternative)
Alarm	Full screen temperature threshold alarm (Vibration, Screen flicker, Buzzer)

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
