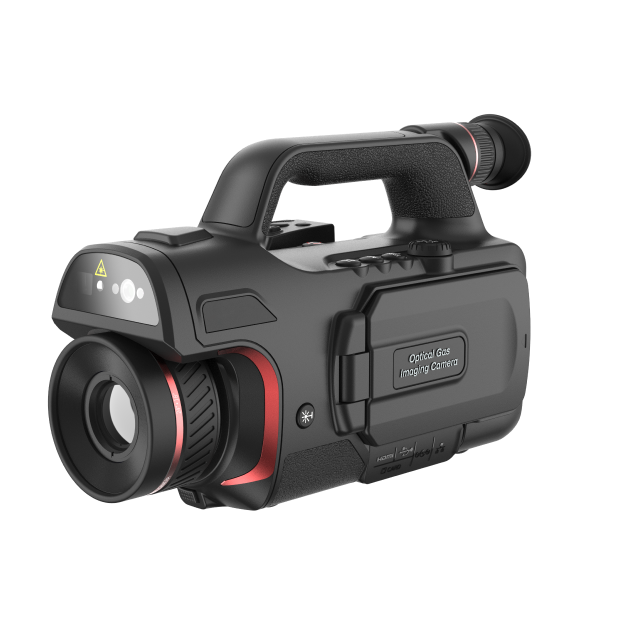

PV400
VOCs Detection Thermal Camera
Based on the self-developed high-performance refrigerated infrared detector, the PV series VOCs detection thermal imaging camera converts invisible gas into infrared images visible to the naked eye by leveraging infrared thermal imaging technology. It realizes effective monitoring of methane and other volatile organic compounds leakage during production, transportation, and handling in petrochemical and other enterprises, avoiding accidents such as dangerous gas emissions and ensuring safe production.
-
Infrared resolution320x256@30μm
-
Frame rate50Hz
-
Gas detection sensitivity0.001mL/s
-
Explosion-proof certificationEx icⅡC T6 Gc
Product Features
-
Refrigeration-type detector
High-sensitivity cooled infrared detector, capable of detecting small gas leakage.
-

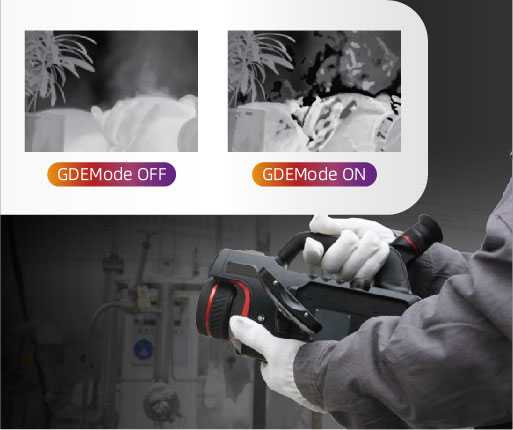

Professional gas-enhancement imaging algorithm
-

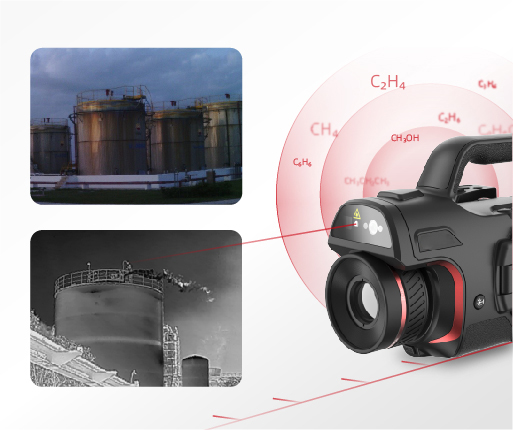

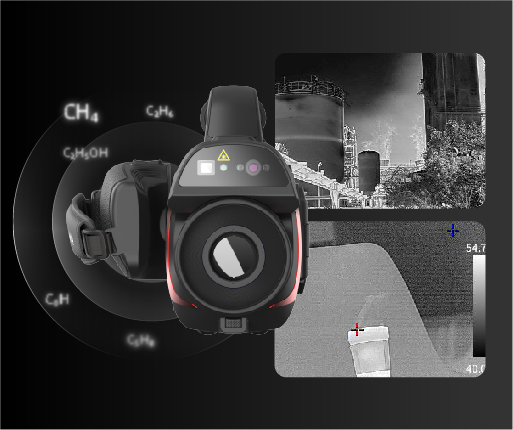

Multiple gas detection
-
Intrinsically safe explosion-proof certification
-

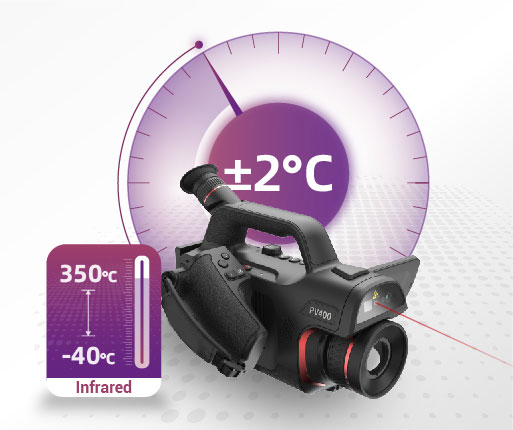

High-precision temperature measurement
-

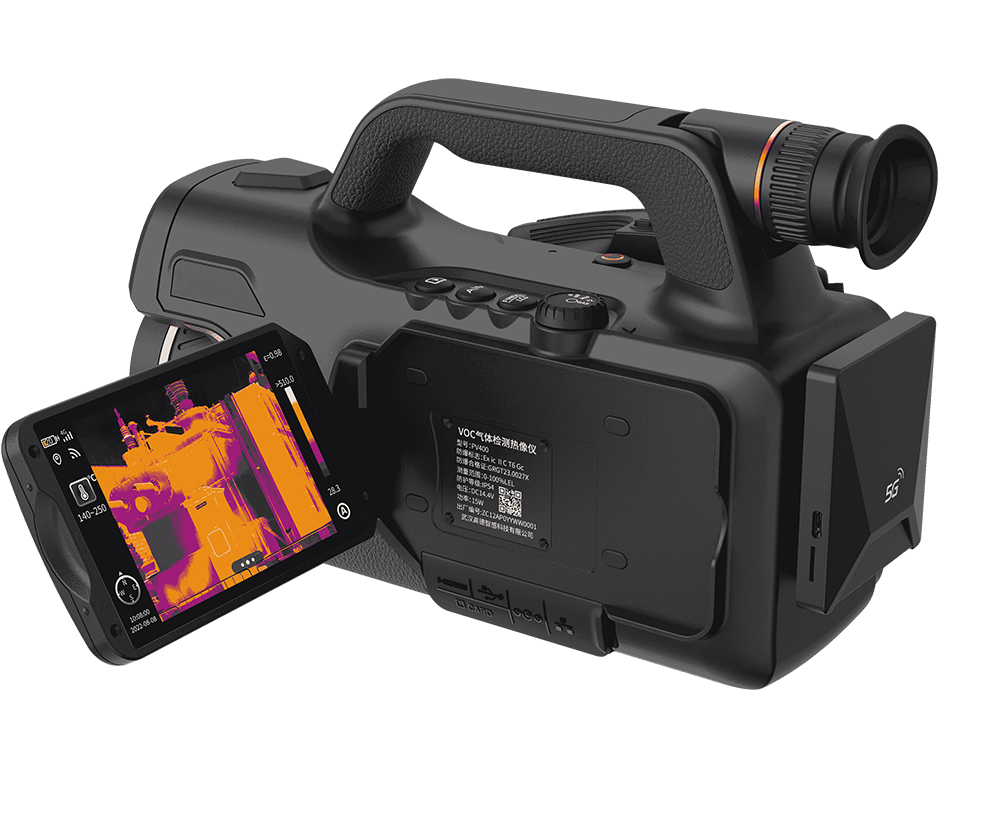

Rotating screen
Solutions
Technical Parameters
Model
PV400
添加对比
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | Cooled, HgCdTe/MCT, 3.2μm~3.5μm | |||
| Infrared resolution | 320×256@30μm | |||
| Super resolution | Yes, Upgrade to 640×512 | |||
| NETD | Detector NETD≤10mK | |||
| Frame rate | 50Hz | |||
| Focal length | 23mm | |||
| Field of view | 24°×18° | |||
| IFOV | 1.3mrad | |||
| Min. object distance | 1m | |||
| D:S | 769:1 | |||
| Focusing mode | Manual/Automatic | |||
| Digital zoom | 1x to 10x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | IR mode: -40~350 °C; Gas mode: -40 °C~60 °C | |||
| Measurement accuracy | ±2°C or ±2%, whichever is greater | |||
| Analyzed target | Supports adding up to 15 analyzed targets (including a maximum of 15 spots, 2 lines, 4 circles, and 4 rectangles) | |||
| Alarm | Full screen temperature threshold alarm (image, voice and flash) | |||
| Others | Isothermals | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
